Dry oxygen generator OXYBERG®900

medicalindustrialfor the food industry

Product information

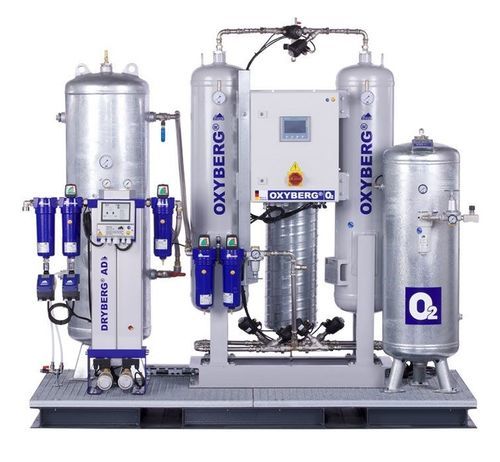

A complete oxygen skid package OXYBERG®900, ready for plug-and-play installation.

• O2 generator OXYBERG®900 with purity and pressure sensors
• 500 L air receiver with condensate drain
• 350 L oxygen vessels with accessories
• Compressed air filter line class 1.-.1 acc. ISO8573-1 (PUREBERG® F 04 WW water separator, PUREBERG® Z 150 oil-free package)
• Compressed air adsorption dryer DRYBERG® AD90
• Metal skid frame with piping and electrical wiring (2x1)
• Air compressor (stationary screw compressor KOMPBERG® BSDK7) — optional

Installation
Installation of the plant on a common metal skid frame, delivered pre-assembled to simplify on-site connection.

Documentation provided / Base frame layout
Assembly layout drawing; P&I scheme; plant description; list of electric/electronic consumers; operation & maintenance manual; spare and wearing parts list; wiring and terminal clamp diagrams; functions drawing; material evidence. Additional documentation available on request.

Applications
Suitable for mineral and cement industry, automotive, steel plants, chemicals, pharmaceuticals, food & beverage, semiconductor & electronics and medical breathing air. OXYBERG® skid generators produce on-site oxygen by removing contaminants (particles, water, oil) from compressed air and can be configured for varying oxygen quality requirements.

Certifications, Standards, Codes and Regulations
All work, materials and equipment comply with applicable codes, regulations and standards of the Federal Republic of Germany. Applicable standards include DIN, VDI/VDE, IEC, UVV. Other standards (e.g. ASME, ATEX, GL, BV) possible by agreement.

Medical application
For medical use, skid oxygen generators can supply medical-grade oxygen to hospitals, clinics and emergency units, providing a continuous and reliable source suitable for respiratory therapy and emergency situations.

Technical characteristics / specifications

• Brand: BERG Kompressoren GmbH
• Model: OXYBERG®900
• Included components: O2 generator with purity & pressure sensors; 500 L air receiver; 350 L oxygen vessels; compressed air filter line class 1.-.1 (ISO8573-1); DRYBERG® AD90 adsorption dryer; metal skid with piping & electrical wiring; optional KOMPBERG® BSDK7 compressor
• Weight: 825 kg
• Product number / SKU: 1020111950
• Standards compliance: DIN, VDI/VDE, IEC, UVV (others possible by agreement)
• Documentation delivered: assembly layout drawing; P&I scheme; plant description; electrical consumer list; operation & maintenance manual; spare parts list; wiring and terminal clamp diagrams; functions drawing; material evidence
