Medical oxygen generator OXYBERG®600

for aquacultureindustrialfor the food industry

Product information

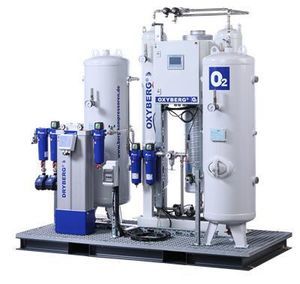

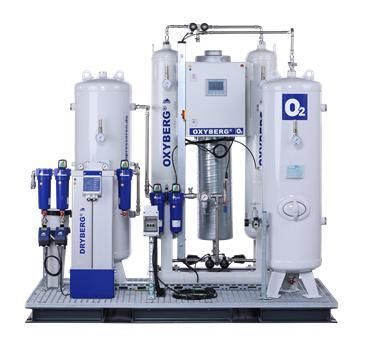

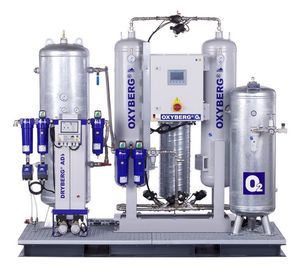

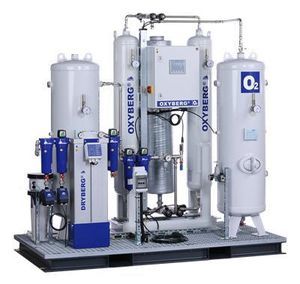

• Skid-mounted O2 generator package OXYBERG®600 with integrated purity and pressure sensors
• 150 L air receiver with condensate drain
• 90 L oxygen vessels with accessories
• Compressed air filter line class 1.-.1 according to ISO 8573-1 (PUREBERG® F02 WW water separator, PUREBERG® Z 04 oil-free package)
• Compressed air adsorption dryer DRYBERG® AD40
• Metal skid frame with complete piping and electrical wiring
• Optional: stationary screw air compressor KOMPBERG® BSDK7 (2x1)

Installation on common metal skid frame

• Assembly layout drawing
• R&I / P&ID scheme
• Plant description and scope
• List of electrical/electronic consumers
• Operation & Maintenance manual
• List of spare & wearing parts
• Wiring diagrams and terminal clamp diagrams
• Functions drawing
• Material evidence and traceability documentation

Applications

• Mineral and cement industry
• Automotive industry
• Steel and metal production plants
• Chemical and pharmaceutical industries
• Food & Beverage processing
• Semiconductor & electronics manufacturing
• Medical breathing-air applications and onsite oxygen supply
• Aquaculture / fish farming

Biogas plants
Skid oxygen generators can be integrated into biogas plants to supply controlled oxygen to digesters, accelerating the breakdown of organic matter and increasing biogas yield. Onsite skid solutions provide a continuous oxygen source and reduce dependence on delivered cylinders or cryogenic supplies.

Certifications, Standards, Codes and Regulations
All work, materials and equipment comply with applicable German regulations and standards. Typical references include:

• DIN standards
• VDI/VDE regulations
• IEC standards
• UVV regulations
• Other standards/codes by agreement (e.g. ASME, ATEX, GL, BV)

Technical specifications

• Model: OXYBERG®600
• Product number / SKU: 1020111650
• Net weight: 621 kg
• Air receiver: 150 L (with condensate drain)
• Oxygen vessels: 90 L (with accessories)
• Oxygen generator: OXYBERG®600 with purity & pressure sensors
• Compressed air filtration: class 1.-.1 (PUREBERG® F02 WW; PUREBERG® Z 04)
• Dryer: DRYBERG® AD40 (adsorption dryer)
• Skid frame: metal skid with piping and electrical wiring
• Optional compressor: KOMPBERG® BSDK7 (stationary screw compressor, 2x1)
• Net price shown (example): €27,900.00 (net)
