Dry oxygen generator OXYBERG®600

for the metallurgical industryfor the pharmaceutical industryfor biogas plant

Product information

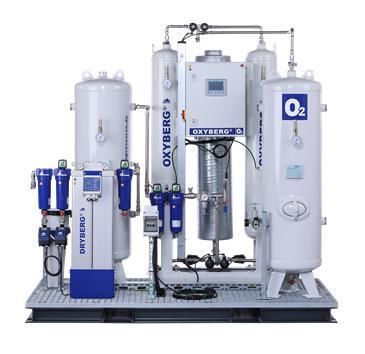

• Complete oxygen package skid: OXYBERG®600 oxygen generator equipped with purity and pressure sensors

Included equipment

• O2 Generator OXYBERG®600 with purity and pressure sensors
• Air receiver 150 L with condensate drain
• Oxygen vessels 90 L with accessories
• Compressed air filter line class 1.-.1 acc. ISO8573-1 (PUREBERG® F02 WW water separator, PUREBERG® Z 04 oil-free package)
• Compressed air dryer DRYBERG® AD40 (adsorption dryer)
• Metal skid frame with piping and electrical wiring 2x1
• Air compressor: stationary screw compressor KOMPBERG® BSDK7 (optional)

Installation and documentation

Installation on a metal skid frame. Basic layout documentation included: assembly layout drawing; P&ID; plant description; list of electrical/electronic consumers; operation & maintenance manual; spare and wearing parts list; wiring and terminal diagrams; functional drawing; material evidence. Additional documents available on request.

Applications & usage

Skid oxygen generators OXYBERG® are intended for on-site oxygen supply across multiple industries: biogas plants (to enhance anaerobic digestion and increase biogas production), glass production, metal industry (welding, cutting, brazing, steelmaking), aquaculture, medical breathing air and other sectors such as mineral and cement, automotive, chemicals, pharmaceuticals, food & beverage, semiconductor & electronics.

Certifications, standards, codes and regulations

All works, materials and equipment comply with applicable German codes, regulations and standards. Applicable standards: DIN; VDI/VDE; IEC; UVV. Other standards or codes (e.g. ASME, ATEX, GL, BV) can be applied by agreement.

Technical specifications

• Model: OXYBERG®600
• Product number (SKU): 1020111650
• Net price (excl. tax): €27,900.00
• Price incl. VAT shown on page: €33,201.00*
• Weight: 621 kg
• Air receiver capacity: 150 L
• Oxygen vessels capacity: 90 L
• Compressed air treatment: ISO8573-1 class 1.-.1 filter line (PUREBERG® F02 WW, PUREBERG® Z 04)
• Compressed air dryer: DRYBERG® AD40 (adsorption dryer)
• Skid-mounted metal frame with piping and electrical wiring
• Optional: Stationary screw compressor KOMPBERG® BSDK7
