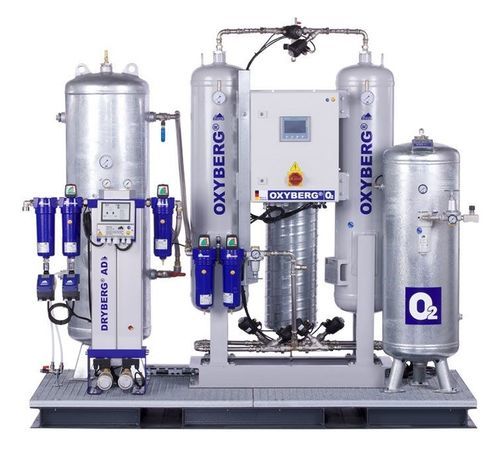

Dry oxygen generator OXYBERG®800

for aquacultureindustrialfor the semiconductor industry

Product summary

• O2 generator OXYBERG®800 with integrated purity and pressure sensors
• Air receiver 350 L with condensate drain
• Oxygen vessels 250 L with accessories
• Compressed air filter line ISO8573-1 class 1.-.1 (PUREBERG® F 03 WW water separator, PUREBERG® Z 150 oil-free package)
• Compressed air dryer — adsorption dryer DRYBERG® AD70
• Metal skid frame with piping and electrical wiring (2x1)
• Air compressor (stationary screw compressor KOMPBERG® BSDK7) — optional

Installation and documentation
System pre-assembled on a common metal skid frame for plug & play installation. Base documentation delivered with the unit includes: assembly/layout drawing, P&I (R&I) scheme, plant description, list of electrical/electronic consumers, operation & maintenance manual, spare and wear parts list, wiring diagrams, terminal block diagrams, functional drawings and material certificates. Additional documentation can be supplied on request.

Applications
Suitable for a broad range of industrial applications: mineral and cement plants, automotive, steel production, chemical and pharmaceutical industries, food & beverage, semiconductor and electronics sectors. Special applications include medical breathing air generation and aquaculture (fish farming) where continuous on-site oxygen supply supports optimal dissolved-oxygen levels, improved growth rates and reduced mortality.

Certifications, standards and codes
All work, materials and equipment comply with applicable regulations and standards of the Federal Republic of Germany. Typical references: DIN standards, VDI/VDE guidelines, IEC standards, UVV regulations. Other standards (e.g. ASME, ATEX, GL, BV) can be applied after agreement.

Technical specifications

• Model: OXYBERG®800
• Manufacturer: BERG Kompressoren GmbH
• Product number (SKU): 1020111850
• Net weight: 751 kg
• Included components: O2 generator with purity & pressure sensors; air receiver 350 L; oxygen vessels 250 L with accessories; compressed air filter line (ISO8573-1 class 1.-.1); adsorption dryer DRYBERG® AD70; metal skid with piping and wiring
• Optional: stationary screw air compressor KOMPBERG® BSDK7
• Compressed air quality reference: ISO8573-1 class 1.-.1
• Packaging / mounting: skid-mounted, plug & play
• Net price shown on page: EUR 34,400.00 (excl. VAT)
