Dry oxygen generator OXYBERG®1000

high-puritypurefor biogas plant

Overview

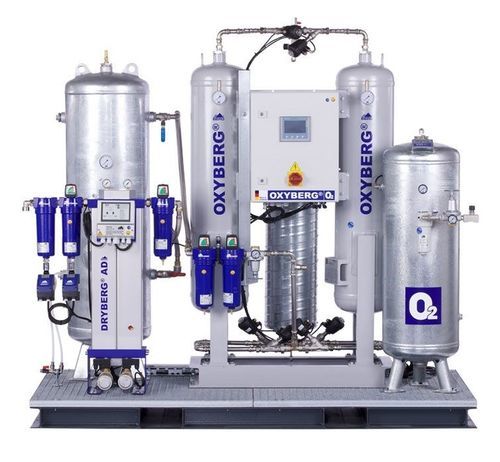

• Complete oxygen skid: OXYBERG®1000 PSA O2 generator with integrated purity and pressure sensors
• 500 L compressed air receiver with condensate drain
• 500 L oxygen receiver with accessories
• Compressed air filtration line class 1.-.1 per ISO 8573-1 (PUREBERG® F 05 WW water separator, PUREBERG® Z 180 oil-free package)
• Compressed air dryer: adsorption dryer DRYBERG AD110
• Metal skid frame mounted on runners with piping and electrical wiring
• Air compressor 2x1 (stationary screw compressor KOMPBERG BSDKF 11/13) — optional

Installation and documentation
System installed on a standard metal skid frame. Basic layout documentation included: assembly layout drawing, P&I diagram, plant description, list of electrical/electronic consumers, operation & maintenance manual, spare and wear parts list, electrical diagrams, terminal diagrams, functional drawings and material verifications. Additional documentation available on request.

Certifications, standards and regulations
All works, materials and equipment listed shall comply with applicable regulations and standards of the Federal Republic of Germany. Referenced standards: DIN, VDI/VDE, IEC, UVV. Other standards/certifications (e.g. ASME, ATEX, GL, BV) available by agreement.

Medical application
Skid-mounted OXYBERG® generators produce medical-grade oxygen for hospitals, clinics and emergency units. Plug-and-play solution for reliable continuous on-site oxygen supply where external medical oxygen access is limited. Suitable for respiratory therapies and emergency response scenarios.

Technical specifications

• Model: OXYBERG®1000
• Manufacturer: BERG Kompressoren GmbH
• Product ref / SKU: 1020111050
• Net price (excl. VAT) shown: EUR 42,900.00
• Weight: 825 kg
• Air receiver: 500 L (with condensate drain)
• Oxygen receiver: 500 L (with accessories)
• Filtration: compressed air filter line class 1.-.1 per ISO 8573-1 (PUREBERG® F 05 WW, PUREBERG® Z 180)
• Dryer: adsorption dryer DRYBERG AD110
• Compressor: optional 2x1 (KOMPBERG BSDKF 11/13)
• Skid: metal frame on runners, piping and electrical wiring included
• Integrated sensors: purity and pressure sensors
• Documentation provided: assembly layout, P&I, O&M manual, spare/wear parts lists, electrical and terminal diagrams, functional drawings
• Typical applications: medical oxygen supply, industrial processes requiring high-purity O2 (mining, cement, steel, chemical, pharmaceutical, food & beverage, semiconductors, aquaculture, biogas, glass, metallurgy)
