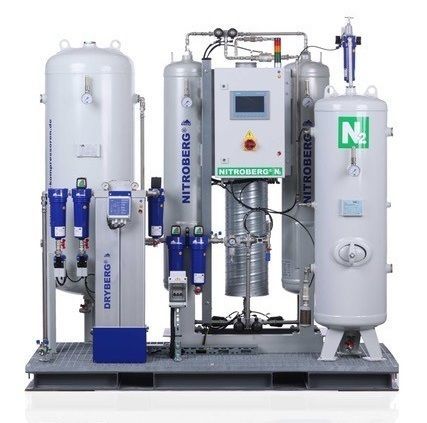

Pure nitrogen generator NITROBERG®500

dryindustrialfor the semiconductor industry

Product information

• Skid-mounted nitrogen generator NITROBERG®500 with integrated purity and pressure sensors
• 150 L air receiver with condensate drain
• 90 L nitrogen vessel with accessories
• Compressed air filter line ISO 8573-1 class 1.-.1 (PUREBERG® F02 WW water separator, PUREBERG® Z 02 oil-free package)
• Compressed air dryer options: refrigeration dryer DRYBERG® RF02 or adsorption dryer DRYBERG® AD30
• Metal skid frame with piping and electrical wiring (2x1)
• Optional stationary screw compressor KOMPBERG® BSDK5/7 (2x1)

Installation and documentation
Plant supplied pre-assembled on a common metal skid for simplified on-site installation and connection. Standard documentation package includes: assembly layout drawing, P&ID (R&I) diagram, plant description, list of electrical/electronic consumers, operation & maintenance manual, spare and wear parts list, wiring diagrams, terminal block diagrams, functional drawing and material certificates. Additional documentation and design adjustments available on request.

Applications / Use cases

• LC/MS (mass spectrometry): on-site nitrogen supply for solvent removal, ionization sources (electrospray, atmospheric pressure ionization), and curtain gas applications.
• Electronics manufacturing: inerting for soldering, reflow, wave soldering, pick-and-place and conformal coating processes to prevent oxidation and contamination.
• Food & Beverage: modified atmosphere packaging (MAP), package inerting and beverage purging to extend shelf life.
• Chemical, pharmaceutical, automotive, steel, semiconductor and other industrial processes requiring controlled, clean nitrogen.

Certifications, Standards, Codes and Regulations
All work, materials and equipment comply with applicable regulations and standards of the Federal Republic of Germany. Typical references: DIN standards, VDI/VDE regulations, IEC standards, UVV. Other standards (e.g. ASME, ATEX, GL, BV) can be implemented by agreement.

Technical specifications

• Model: NITROBERG®500
• Manufacturer: BERG Kompressoren GmbH
• Product number (SKU): 1020222550
• Weight (approx.): 542 kg
• Included air receiver: 150 L (with condensate drain)
• Nitrogen vessel: 90 L (with accessories)
• Air treatment: Filter line ISO 8573-1 class 1.-.1
• Dryer options: DRYBERG® RF02 (refrigeration) or DRYBERG® AD30 (adsorption)
• Skid: metal frame, skid-mounted, piping and electrical wiring included (2x1)
• Optional compressor: KOMPBERG® BSDK5/7 (stationary screw compressor)
• Net price shown on page (Excl. VAT): 28,700.00 EUR
