Packaging nitrogen generator NITROBERG®900

for the food industrybottlingfor the wine industry

Overview

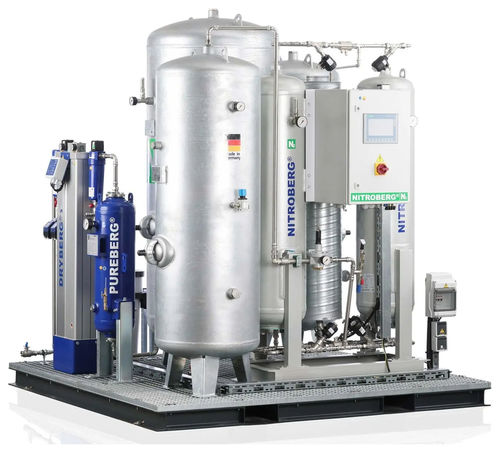

Complete skid-mounted nitrogen generator system NITROBERG®900 designed for on-site N2 production, supplied with purity and pressure sensors and associated equipment.

Package contents

• N2 generator NITROBERG®900 with purity and pressure sensors
• 500 L compressed air receiver with condensate drain
• 350 L nitrogen receiver with accessories
• Compressed air filtration line to ISO 8573-1 class 1.-.1 (PUREBERG® F04 WW water separator, oil-free pack PUREBERG® Z 150 V)
• Compressed air dryer (refrigerated DRYBERG® RF04 or adsorption DRYBERG® AD90)
• Steel skid frame with piping and electrical wiring
• Air compressor 2x1 (stationary screw compressor KOMPBERG® BSDK5/7) — optional

Installation and documentation
System installed on a standard steel skid frame.
Basic documentation provided:

• Assembly layout drawing
• P&ID diagram
• System description
• List of electrical/electronic consumers
• Operation and maintenance manual
• Spare and wear parts list
• Circuit and terminal diagrams
• Functional drawing and material verifications

Certifications, standards and compliance
All works, materials and equipment comply with applicable regulations and standards of the Federal Republic of Germany. Typical standards and frameworks: DIN, VDI/VDE, IEC, UVV. Other standards (ASME, ATEX, GL, BV, etc.) available on request.

Typical applications

• Food packaging: nitrogen-rich atmospheres to extend shelf life (snacks, nuts, coffee)
• Beverage production: oxygen removal from containers (bottles, cans) to prevent oxidation (beer, wine)
• Modified atmosphere packaging (MAP): replacing air with N2 for perishables (meat, seafood, fresh produce)
• Coffee production: nitrogen storage to preserve flavor and aroma
• Snack production: use of nitrogen to protect oils and extend product life
• Industrial uses: mining, cement, automotive, steel, chemical, pharmaceutical, semiconductor and electronics applications for inerting, purging, pressurization and process air preparation

Additional information
The system uses compressed air prepared to industry standards and offers modular equipment options that can be adapted to specific application requirements.

Technical specifications

• Model: NITROBERG®900
• Product ref / SKU: 1020222950
• Manufacturer: BERG Kompressoren GmbH
• Weight: 825 kg
• Air receiver: 500 L
• Nitrogen receiver: 350 L
• Filtration: ISO 8573-1 class 1.-.1 (PUREBERG® F04 WW, PUREBERG® Z 150 V oil-free pack)
• Dryer options: DRYBERG® RF04 (refrigerated) or DRYBERG® AD90 (adsorption)
• Optional compressor: KOMPBERG® BSDK5/7 (2x1)
• Net price shown: 40,990.00 EUR
