Inert nitrogen generator NITROBERG®800

drylaboratoryfor the metallurgical industry

Product overview

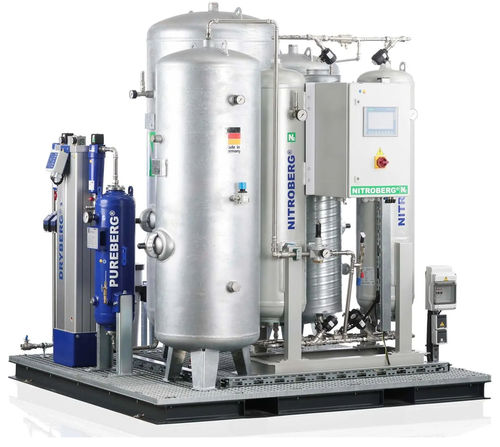

The skid-mounted NITROBERG®800 package is a plug-and-play solution for on-site nitrogen generation, designed for industrial applications requiring reliable, on-demand N2 supply.

Included components

• N2 generator NITROBERG®800 with purity and pressure sensors
• Air receiver 350 L with condensate drain
• Nitrogen vessels 250 L with accessories
• Compressed air filter line ISO 8573-1 class 1.-.1 (PUREBERG® F03 WW water separator, PUREBERG® Z 150 V oil-free package)
• Compressed air dryer: refrigeration DRYBERG® RF03 or adsorption DRYBERG® AD70
• Metal skid frame with piping and electrical wiring (prewired 2x1)
• Optional: stationary screw air compressor KOMPBERG® BSDK5/7

Installation and documentation
Delivered as a skid-mounted unit for straightforward installation. Documentation includes assembly layout drawing, P&ID/R&I scheme, plant description, list of electrical/electronic consumers, operation & maintenance manual, spare & wear parts list, wiring and terminal diagrams, functional drawings and material evidence. Additional documents available on request.

Compressed air / application context
Compressed air quality is critical for PSA/PSA-like nitrogen systems. This package is suitable for applications in mining and cement, automotive, steel, chemicals, pharmaceuticals, food & beverage (MAP), semiconductors & electronics, medical breathing air supply and laboratory use. Appropriate air preparation removes particles, water and oil to meet process requirements.

Certifications, standards, codes and regulations
All works, materials and equipment referenced comply with applicable codes and standards of the Federal Republic of Germany. Typical standards include:

• DIN standards
• VDI/VDE regulations
• IEC standards
• UVV regulations
• Other standards/codes (e.g. ASME, ATEX, GL, BV) possible by agreement

Aerospace industry applications
Typical aerospace uses include purging and inerting of fuel tanks and pipelines, inerting of aircraft tires and components, and inerting during manufacturing and assembly to prevent oxidation and ensure product reliability and safety.

Other application notes
The skid solution delivers modular on-site nitrogen generation for MAP food packaging, beverage purging, electronics manufacturing (soldering/reflow inerting), semiconductor production, chemical and oil & gas blanketing/purging, pressure testing and laboratory/LC-MS supply.

Technical specifications

• Model: NITROBERG®800
• Product number / SKU: 1020222850
• Brand: BERG Kompressoren GmbH
• Included: N2 generator with purity & pressure sensors; air receiver 350 L; N2 vessels 250 L; filter line ISO 8573-1 class 1.-.1; dryer DRYBERG® RF03 or AD70; skid-mounted metal frame with piping & wiring; optional KOMPBERG® BSDK5/7 compressor
• Air receiver: 350 L (with condensate drain)
• Nitrogen vessels: 250 L
• Filter class: ISO 8573-1 class 1.-.1
• Dryer options: DRYBERG® RF03 (refrigerated) or DRYBERG® AD70 (adsorption)
• Weight: 751 kg
• Net price (product page): €36,400.00
• Gross / listed price on page: €43,316.00*
