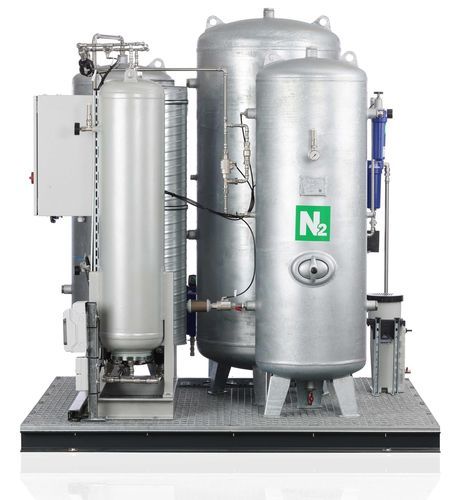

Dry nitrogen generator NITROBERG®1000

inertfor the pharmaceutical industryfor the aerospace industry

Product overview
A complete on-site nitrogen generation package based on the NITROBERG®1000, supplied skid-mounted with purification, storage and instrumentation for industrial N2 production.

Included components

• N2 generator NITROBERG®1000 with purity and pressure sensors
• Air receiver 500 L with condensate drain
• Nitrogen vessels 500 L with accessories
• Compressed air filter line ISO 8573-1 class 1.-.1 (PUREBERG® F05 WW water separator, PUREBERG® Z 180 V oil-free package)
• Compressed air dryer: DRYBERG® RF05 (refrigerated) or DRYBERG® AD110 (adsorption)
• Metal skid frame with piping and electrical wiring (2x1)
• Air compressor KOMPBERG® BSDKF11/13 (stationary screw) — optional

Installation & documentation
Plant delivered mounted on a common metal skid frame. Base documentation includes assembly layout drawing, R&I (P&ID) scheme, plant description, list of electrical/electronic consumers, operation & maintenance manual, spare and wearing parts list, wiring diagrams, terminal clamp diagrams, functional drawings and material evidence. Further documentation available on request.

Certifications, standards and compliance

• Works, materials and equipment comply with applicable codes and regulations of the Federal Republic of Germany
• Examples of applicable standards: DIN, VDI/VDE, IEC, UVV
• Other standards (ASME, ATEX, GL, BV, etc.) available after agreement

Applications / Industries

• Food & Beverage: food packaging, MAP (modified atmosphere packaging), beverage production, coffee and snack production
• Chemicals & Pharmaceuticals
• Automotive and metal industries
• Semiconductor & Electronics
• Medical breathing air and laboratory applications (e.g., LC/MS)
• Oil & Gas: purging, inerting and blanketing
• Aerospace: purging and inerting in manufacturing and maintenance

Notes
Compressed air quality requirements depend on the application; contaminants to consider include particles, water and oil. Select filters, dryer type and compressor option according to required N2 purity, flow and application.

Technical specifications

• Model: NITROBERG®1000
• Product number / SKU: 1020221050
• Manufacturer: BERG Kompressoren GmbH
• Generator: N2 generator with purity and pressure sensors
• Air receiver: 500 L (with condensate drain)
• Nitrogen vessels: 500 L (with accessories)
• Compressed air filter line: ISO 8573-1 class 1.-.1 (PUREBERG® F05 WW, PUREBERG® Z 180 V)
• Dryer options: DRYBERG® RF05 (refrigerated) or DRYBERG® AD110 (adsorption)
• Skid: metal frame, skid-mounted with piping and electrical wiring 2x1
• Optional air compressor: KOMPBERG® BSDKF11/13 (stationary screw compressor)
• Weight: 825 kg
• Price (net as shown on product page): €46,140.00
