Dry nitrogen generator NITROBERG®700

pureindustrialfor the metallurgical industry

Product overview

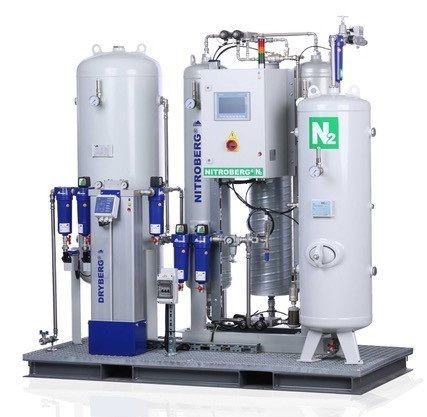

Skid-mounted plug-and-play nitrogen generation package based on the NITROBERG®700 for on-site industrial N2 supply. Integrated air treatment and storage components allow immediate commissioning and connection to existing plant utilities.

Main components

• N2 generator NITROBERG®700 with purity and pressure sensors
• Air receiver 150 L with condensate drain
• Nitrogen vessels 150 L with accessories
• Compressed air filter line class 1.-.1 according to ISO8573-1 (PUREBERG® F03 WW water separator, PUREBERG® Z 04 oil-free package)
• Compressed air dryer (refrigerated DRYBERG® RF02 or adsorption DRYBERG® AD55)
• Metal skid frame with piping and electrical wiring
• Air compressor (stationary screw compressor KOMPBERG® BSDK5/7) — optional

Installation & documentation
Plant mounted on a standard metal skid for simplified transport and installation.

• Assembly layout drawing
• R&I / P&ID scheme
• Plant description
• List of electrical/electronic consumers
• Operation & maintenance manual
• List of spare and wearing parts
• Wiring diagrams and terminal clamp diagrams
• Functional drawings
• Material certificates
• Further documentation available on request

Certifications & standards
All works, materials and equipment comply with applicable codes and standards of the Federal Republic of Germany. Applicable standards include:

• DIN standards
• VDI/VDE regulations
• IEC standards
• UVV regulations
• Other standards (e.g. ASME, ATEX, GL, BV) possible by agreement

Applications & typical uses
The skid-mounted NITROBERG®700 system is intended for industrial on-site nitrogen supply and is suitable for multiple sectors including (non-exhaustive):

• Mineral and cement industry
• Automotive and steel plants
• Chemicals and pharmaceuticals
• Food & beverage (MAP, beverage purge, shelf-life extension)
• Semiconductor & electronics (inerting, soldering/reflow, conformal coating)
• Medical laboratories and breathing air applications
• Oil & gas (purging, inerting, blanketing, pressure maintenance, well operations)

Notes
Delivery comprises a plug-and-play skid package including gas generator, air-treatment components, storage vessels, skid frame and documentation. Options (e.g. air compressor) available as additional items. System can be adapted to project-specific standards and requirements.

Technical specifications

• Model / commercial denomination: NITROBERG®700
• Manufacturer / Brand: BERG Kompressoren GmbH
• Product number / SKU: 1020222750
• Weight: 683 kg
• Includes: N2 generator with purity & pressure sensors; air receiver 150 L; nitrogen vessels 150 L; compressed air filter line (class 1.-.1 ISO8573-1); compressed air dryer (refrigerated or adsorption); skid-mounted metal frame with piping and wiring
• Price (net, product main offer): 31800.00
• Price currency: EUR
• Price unit: net per piece
• Documentation delivered: assembly layout drawing, R&I scheme, plant description, wiring diagrams, operation & maintenance manual, spare parts list
