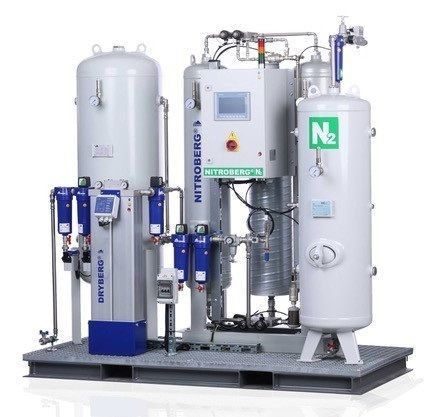

Dry nitrogen generator NITROBERG®600

for the food industryindustrialfor electronics

Product information
Skid-mounted nitrogen generator package NITROBERG®600 supplied with purity and pressure sensors, receivers and accessories for on-site nitrogen production.

Package contents

• N2 Generator NITROBERG®600 with purity and pressure sensors
• Air receiver 150 l with condensate drain
• Nitrogen vessels 90 l with accessories
• Compressed air filter line class 1.-.1 acc. ISO8573-1 (PUREBERG® F02 WW water separator, PUREBERG® Z 04 oil-free package)
• Compressed air dryer: Refrigerator DRYBERG® RF02 or Adsorption Dryer DRYBERG® AD40
• Metal skid frame, skid-mounted with piping and electrical wiring (2x1)
• Air compressor (stationary screw compressor KOMPBERG® BSDK5/7) optional

Installation on metal skid frame and documentation
Unit delivered skid-mounted for simplified mechanical and electrical installation.

• Assembly layout drawing
• R&I / P&ID scheme
• Plant description and functional drawing
• List of electric/electronic consumers
• Operation & Maintenance Manual
• List of spare and wearing parts
• Wiring diagrams and terminal clamp diagrams
• Material evidence

Certifications, standards and regulations
All works, materials and equipment are designed to comply with applicable codes and standards of the Federal Republic of Germany. Typical references:

• DIN standards
• VDI/VDE regulations
• IEC standards
• UVV regulations
• Other standards on request (e.g. ASME, ATEX, GL, BV)

Chemical industry applications
Skid nitrogen generators are used for blanketing and purging of storage tanks and reactors, inerting during maintenance and shutdown, sparging to remove dissolved oxygen, pressure testing of pipelines and vessels, and processes requiring inert atmosphere control.

Food & Beverage applications
Used for modified atmosphere packaging (MAP), purging oxygen from containers, coffee bean storage, frying oil protection and other applications that require oxygen reduction to extend shelf life and preserve product quality.

Electronics and other industry applications
Applicable for soldering/reflow atmospheres, semiconductor process inerting, wave soldering, component testing and flushing, conformal coating and LC/MS use where on-site nitrogen reduces cost and improves process safety.

Technical characteristics / specifications

• Model: NITROBERG®600
• Manufacturer: BERG Kompressoren GmbH
• Product number / SKU: 1020222650
• Indicative net price: €29,600.00 (currency: EUR)
• Weight: 621 kg
• Air receiver: 150 l (with condensate drain)
• Nitrogen vessels: 90 l (with accessories)
• Compressed air filter line: class 1.-.1 acc. ISO8573-1 (PUREBERG® F02 WW, PUREBERG® Z 04)
• Dryer options: DRYBERG® RF02 (refrigeration) or DRYBERG® AD40 (adsorption)
• Mounting: metal skid frame, skid-mounted with piping and electrical wiring (2x1)
• Optional: Stationary screw compressor KOMPBERG® BSDK5/7
