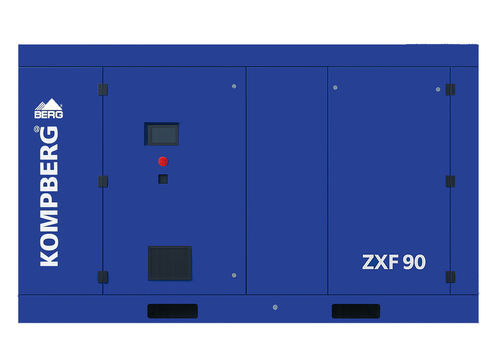

Screw compressor KOMPBERG® ZXF90

airelectricstationary

Product overview

• Low maintenance costs
• Compression elements designed for two-stage operation
• Low transmission losses
• Maintenance‑friendly air filter
• Minimal suction losses
• Stainless steel components and piping

Technical data (extract)
Oil-free two-stage screw compressors — ZXF 90
Operating overpressure [bar]: 8 / 10
Delivery volume [m³/min] [8 bar]: 13.9
Delivery volume [m³/min] [10 bar]: 12.8
Dimensions (LxWxH) [mm]: 2800 x 1600 x 2000
Compressed air connection: G 2
Weight (table) [kg]: 3270
Cooling air flow [m³/h]: 11700
Ambient temperature [°C]: +5 ÷ +40
Compressed air temperature [°C]: approx. 10 - 15 °C above ambient
Sound level [dB(A)]: 85
Power transmission system: direct drive
Nominal motor power [kW]: 90
Nominal fan motor power [kW]: 4.0
Supply voltage [V]: 400
Recommended supply cable section [mm²]: 3x95+PE
Fuse [A]: 200

Associated documents (examples)
Datasheet, user manual, spare parts list and maintenance documents available as PDF (see the product downloads section).

Characteristics / technical specifications

• Model: KOMPBERG® ZXF90
• Type: Oil-free two-stage screw compressor, air-cooled
• Rated flow: 13.9 m³/min at 8 bar / 12.8 m³/min at 10 bar
• Operating pressure: 8 / 10 bar
• Motor power: 90 kW
• Fan motor power: 4.0 kW
• Voltage: 400 V
• Weight: 3270 kg (table); alternative meta value: 3320 kg
• Dimensions (L x W x H): 2800 x 1600 x 2000 mm
• Compressed air connection: G 2
• Cooling air flow: 11700 m³/h
• Ambient temperature range: +5 ÷ +40 °C
• Sound level: 85 dB(A)
• Drive system: direct drive
• Recommended supply cable section: 3x95+PE
• Recommended fuse: 200 A
• Control: Siemens inverter drive (where specified)
• Manufacturer: BERG Kompressoren GmbH
• Product number / SKU: 1481110474
