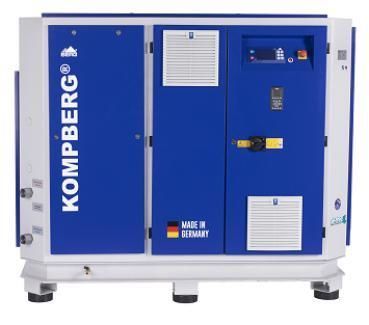

Screw compressor KOMPBERG® ZWF 85

airelectricstationary

Product overview
Oil-free, water-injected screw compressor KOMPBERG® ZWF 85 designed for industrial compressed air applications. Variable-speed drive and integrated water treatment ensure consistent lubrication and cooling for reliable operation.

Water treatment system
A mixed-bed ion exchanger and water filter are integrated into the compressor circuit to maintain high-quality circulation water. Free ions are removed to prevent calcium deposits. Continuous water quality monitoring is standard for the ZWF series.

Energy savings
Equipped with variable speed control and an intelligent control/monitoring system to optimize energy consumption according to actual air demand.

Variable speed control
The variable-speed drive adapts compressor output to fluctuating air demand, providing cost-efficient and steady compressed air flow. The frequency converter is installed inside the control cabinet.

Key features

• Oil-free, water-injected screw compressor design
• Integrated mixed-bed ion exchanger and water filter for circulation water treatment
• Continuous water quality monitoring (standard for ZWF series)
• Variable speed control with frequency converter integrated in switch cabinet
• Industrial-grade design focused on efficiency and reliability

Technical specifications

• Model: KOMPBERG® ZWF 85
• Type: Oil-free water-injected screw compressor
• Operating overpressure [bar]: 8 / 10 / 13
• Capacity at 6 bar [m3/min]: -
• Capacity at 8 bar [m3/min]: 1.55 - 11.43
• Capacity at 10 bar [m3/min]: 1.55 - 11.43
• Capacity at 13 bar [m3/min]: 1.55 - 10.12
• Dimensions (L x W x H) [mm]: 2074 x 1307 x 1754
• Compressed air connection: G 2
• Weight [kg]: 1750
• Ambient temperature [°C]: +5 ÷ +40
• Cooling water required, 100% water [m³/h]: 8.0
• Cooling water required, 40% glycol [m³/h]: 9.0
• Compressed air outlet temperature above water [K]: 15
• Sound level L [dB(a)]: 76
• Rated motor power [kW]: 85
• Water capacity [l]: 65
• Voltage [V]: 380 - 440
• Recommended power feed cable [mm²]: 95
• Protection fuse [A]: 200
