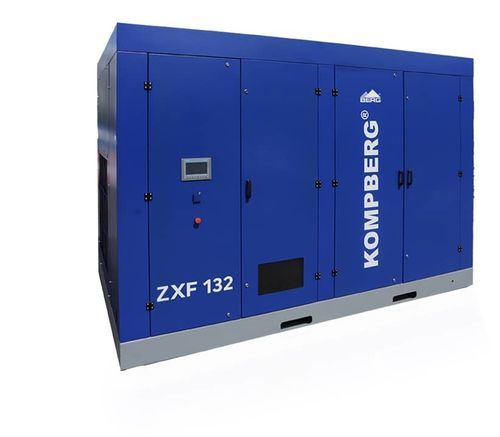

Screw compressor KOMPBERG® ZXF132airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-free
- Application domain
- industrial
- Voltage
- 400 V
- Other characteristics
- direct-drive, air-cooled, two-stage
- Pressure
Min.: 8 bar
(116.03 psi)Max.: 10 bar
(145.04 psi)- Flow
Min.: 1,140 m³/h
(40,258.72 ft³/h)Max.: 1,272.6 m³/h
(44,941.44 ft³/h)- Power
132 kW
(179.47 hp)- Length
3,400 mm
(133.86 in)- Width
2,100 mm
(82.68 in)- Height
2,400 mm
(94.49 in)- Weight
Min.: 4,500 kg
(9,920.8 lb)Max.: 4,550 kg
(10,031 lb)
Description
Description
BERG is an expert in the design and manufacture of reliable oil-free screw compressors. The ZX series continues this proven tradition: two-stage, air-cooled units engineered for industries that require high-quality oil-free compressed air. The KOMPBERG® ZXF132 delivers a robust design and reduced operating costs. BERG Kompressoren is certified to ISO 8573-1 CLASS 0 for air purity and each unit is factory-tested to ensure compliance with specifications and safe, predictable operation. ZX series oil-free compressors are user-friendly and require minimal maintenance.
Key features
Technical specifications
BERG is an expert in the design and manufacture of reliable oil-free screw compressors. The ZX series continues this proven tradition: two-stage, air-cooled units engineered for industries that require high-quality oil-free compressed air. The KOMPBERG® ZXF132 delivers a robust design and reduced operating costs. BERG Kompressoren is certified to ISO 8573-1 CLASS 0 for air purity and each unit is factory-tested to ensure compliance with specifications and safe, predictable operation. ZX series oil-free compressors are user-friendly and require minimal maintenance.
Key features
- 100% oil-free two-stage screw compressor, air-cooled.
- Robust design for reduced operating costs.
- Certified ISO 8573-1 CLASS 0 (oil-free air quality).
- Factory-tested for specification compliance.
- Designed for simple operation and easy maintenance.
Technical specifications
- Commercial designation: KOMPBERG® ZXF132
- Product reference (SKU): 1481110476
- Type: Oil-free two-stage screw compressor — ZXF 132
- Operating overpressure (bar): 8 / 10
- Delivery [m3/min] at 8 bar: 21.21
- Delivery [m3/min] at 10 bar: 19
- Dimensions (L x W x H) [mm]: 3400 x 2100 x 2400
- Compressed air connection: G 3
- Weight (table) [kg]: 4500
- Weight (product metadata) [kg]: 4550
- Ambient operating temperature [°C]: +5 ÷ +40
- Cooling air demand [m³/h]: 19500
- Compressed air temperature [°C]: approx. 10 - 15 degrees above ambient temperature
- Sound level [dB(A)]: 85
- Power transmission system: direct drive
- Nominal motor power [kW]: 132
- Nominal fan motor power [kW]: 11
- Supply voltage [V]: 400
- Recommended supply line cross-section [mm²]: 3x150 + PE
- Recommended fuse [A]: 315
