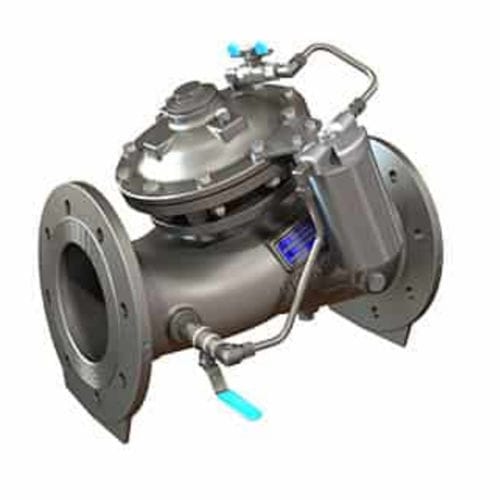

Diaphragm valve MN-720-PDhydraulically-operatedfor controlpressure-reducing
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- hydraulically-operated
- Function
- for control, pressure-reducing
- Body
- seat, double, in-line
- Applications
- flexible, actuator
- Other characteristics
- high-pressure, actuated, integral, for high flow rates
- DN
Max.: 500 mm
(19.685 in)Min.: 40 mm
(1.575 in)- Pressure
Max.: 400 psi
Min.: 250 psi
Description
Overview
Hydraulically operated, diaphragm-actuated pressure reducing valve designed to lower a higher upstream pressure to a fixed lower downstream pressure ratio. The Bermad 700 Sigma Series MN-720-PD is an oblique-pattern globe valve with a seat assembly and a removable double‑chamber unitized actuator. The hydrodynamic body offers an unobstructed flow path and strong modulation capacity for high differential pressure applications, with reduced cavitation and low noise for heavy-duty environments.
Identifiers
Features & benefits
Double-chamber actuator design
Documentation available
Technical specifications
Hydraulically operated, diaphragm-actuated pressure reducing valve designed to lower a higher upstream pressure to a fixed lower downstream pressure ratio. The Bermad 700 Sigma Series MN-720-PD is an oblique-pattern globe valve with a seat assembly and a removable double‑chamber unitized actuator. The hydrodynamic body offers an unobstructed flow path and strong modulation capacity for high differential pressure applications, with reduced cavitation and low noise for heavy-duty environments.
Identifiers
- Model: MN-720-PD
- Manufacturer: Bermad
- Type: Proportional pressure reducing valve
- Series: 700 Sigma Series
- Segments: Waterworks / Mining / Industrial
Features & benefits
- Tamper-resistant design
- Excellent anti-cavitation performance
- Wide flow range and high modulation capability
- High stability and control accuracy
- Drip-tight sealing
- Unobstructed flow path for effective control under high differential pressures
- Modular design allowing easy addition of optional functions
Double-chamber actuator design
- Protected diaphragm
- Rapid response to sudden system changes
- Actuator removable as a single unit for simplified in-line maintenance
Documentation available
- Product page PDF and product brochure for MN-720-PD
- Installation, Operation & Maintenance (IOM) manual for MN-720-PD
- 700 Sigma Series brochures and spare parts lists
- Ordering guide and engineering documentation
Technical specifications
- Operation: Hydraulically operated, diaphragm-actuated
- Function: Reduces upstream pressure to downstream pressure at a fixed ratio (proportional)
- Construction: Oblique-pattern globe valve with seat assembly
- Actuator: Double-chamber unitized actuator, removable as an integral unit
- Flow path: Hydrodynamic body for unobstructed flow and effective modulation
- Performance: Designed for high differential pressure with minimal cavitation and low noise
- Materials: Suitable for mining and heavy-duty industrial environments
