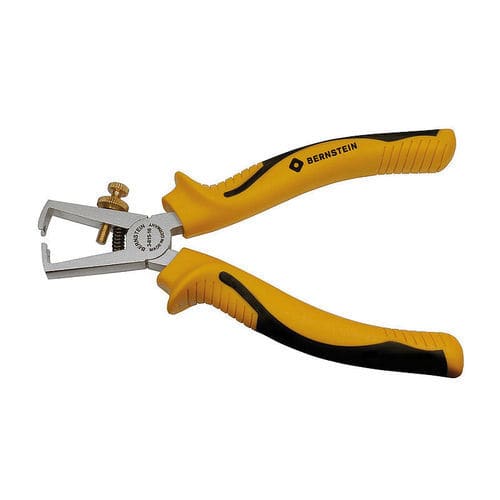

Cable wire stripper 3-815-16

for wiresteelvariable

Hand wire stripper for inserted-joint stripping of cables. Equipped with an adjusting screw, compression (opening) spring and lock nut. Chrome-plated tool steel (HRC 54-56) with 2-component ergonomic, non-slip handles. Length 165 mm, weight 173 g.

Main features

• For max. wire thickness Ø 5 mm
• Conductor cross-section: 10 mm²
• With spring, adjusting screw and lock nut
• Material: tool steel, hardness HRC 54-56
• Fine-polished, matt chrome-plated finish
• 2-component plastic handle, ergonomic and non-slip
• Length: 165 mm
• Weight: 173 g

Area of application
Inserted-joint stripping pliers for a range of wire thicknesses. Suitable for manual stripping tasks where adjustable stripping depth and a return spring are required. Chrome-plated finish for corrosion resistance.

Technical specifications

• Model / Item number: 3-815-16
• Designation: Wire stripper with adjusting screw and opening spring
• Max. wire thickness: Ø 5 mm
• Conductor cross-section: up to 10 mm²
• Adjustment: adjusting screw with lock nut
• Spring: compression spring (opening spring)
• Material: tool steel, hardness HRC 54-56
• Surface finish: fine-polished, matt chrome-plated
• Handle: 2-component plastic, ergonomic, non-slip
• Length: 165 mm
• Weight: 173 g
