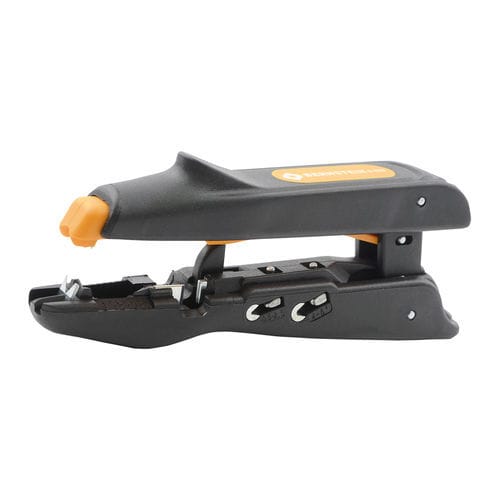

Crimp wire stripper 5-532

cuttingside cuttingmultifunction

The 5-532 is a professional stripping and crimping tool that combines stripping, crimping and cutting functions in a single instrument. It features an automatic adjustment to conductor cross-section for reliable, easy handling and allows twisting of stranded conductors after stripping.

Area of application
Stripping, crimping and cutting with one tool. Automatic adjustment to conductor cross-section. Suitable for stranded and solid conductors. Easy stripping of 0.5 - 6.0 mm².

Technical description
Special scanning system automatically adjusts to wire diameter for precise stripping. Stripping length: 5 mm. Crimping ranges for terminals: 0.5 - 2.5 mm² and 4.0 - 6.0 mm². Side cutter cutting capacity: max. 6.0 mm². Maximum conductor for cutting: 4.0 mm². Overall length: 160 mm. Weight: 114 g.

Characteristics / Technical specifications

• Stripping range: 0.5 - 6.0 mm²
• Stripping length: 5 mm
• Crimping ranges (terminals): 0.5 - 2.5 mm² and 4.0 - 6.0 mm²
• Cutting capacity (side cutters): max. 6.0 mm²
• Maximum conductor for cutting: 4.0 mm²
• Automatic scanning system for adjustment to wire diameter
• Suitable for twisting stranded conductors after stripping
• Blades: special stainless steel
• Handle: 1-component plastic
• Overall length: 160 mm
• Weight: 114 g
