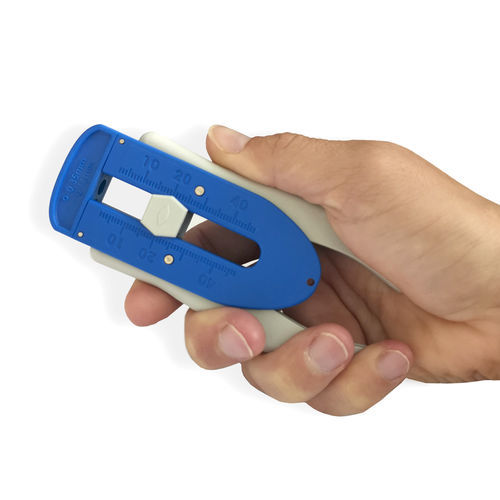

Stripper 5-544

Precision fiber optic stripper designed to remove the primary coating from Ø 0.125 mm fibers with an adjustable stripping length for repeatable results in assembly and repair operations.

Key features

• Fast and simple removal of primary coating on optical fibers
• Designed for fiber core diameter Ø 0.125 mm (125 µm)
• Blade diameter Ø 0.16 mm; cable feed hole Ø 0.35 mm
• Adjustable length stop from 5 to 45 mm for consistent stripping length
• Compact size and intuitive handling; suitable for right- and left-handed users
• Body made of glass fibre reinforced polyamide for industrial use
• TÜV-/GS tested
• Overall length: 112 mm; Weight: 45 g

Area of application
Ideal for precise stripping tasks in fiber optic assembly, connectorization and repair. Suited to laboratory, production and field service environments where accurate primary coating removal (200–250 µm) is required.

Technical description
Blade Ø 0.16 mm with a cable feed hole Ø 0.35 mm. Intended to remove primary coating with diameter Ø 0.200–0.250 mm (200–250 µm) from fibers with overall diameter Ø 0.125 mm (125 µm). Use only on de-energized, potential-free cables and lines.

Characteristics / technical specifications

• Model: 5-544
• Intended cable diameter: Ø 0.125 mm (125 µm)
• Coating removal range: Ø 0.200–0.250 mm (200–250 µm)
• Blade diameter: Ø 0.16 mm
• Hole for cable feed: Ø 0.35 mm
• Adjustable length stop: 5–45 mm
• Overall length: 112 mm
• Weight: 45 g
• Body material: glass fibre reinforced polyamide
• Safety/certification: TÜV-/GS tested
