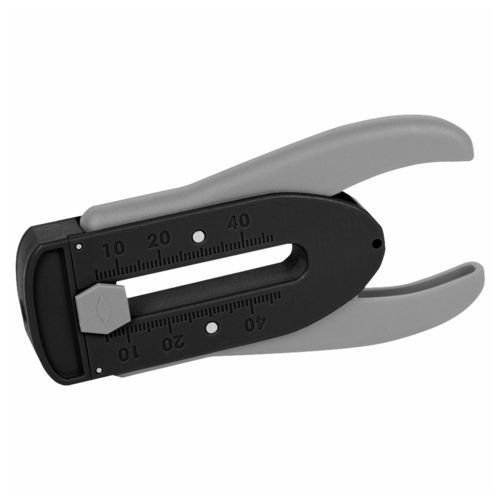

Electronic wire stripper 5-543

for wireESDprecision

Compact ESD precision wire stripper designed for fast, safe and precise stripping of fine conductors and wires. The tool features an automatic scanning system that adapts to the conductor cross-section and an adjustable length stop for repeatable stripped lengths.

Features

• for conductors and strands Ø 0.12 to 0.80 mm (AWG 36-20)
• automatic scanning system adjusts to the conductor cross-section
• adjustable length stop from 5 - 45 mm
• quick, easy and precise stripping
• compact size and intuitive handling
• suitable for conductors with external insulation: PVC, Teflon, KYNAR, TEFZEL, MYLAR
• for work in ESD-protected areas (ESD workstation / ESD protection zone)
• ESD body made of glass fibre reinforced polyamide, dissipative approx. 10^9 Ohm
• overall length: 112 mm
• weight: 45 g

Area of application
Fast, safe and precise stripping of fine conductors and wires. Stepless stripping range from 0.12 mm to 0.80 mm (36-20 AWG). The automatic scanning system adapts to the conductor cross-section to ensure correct stripping without damage.

Technical description
Precise work thanks to an adjustable, scaled length stop from 5 to 45 mm. Innovative, compact design with intuitive handling; suitable for right- and left-hand operators. Lightweight, robust construction made of glass fibre reinforced polyamide. Use only on potential-free, non-energized cables and wires. ESD version suitable for use in ESD workstations and protection zones.

Technical specifications

• Model: 5-543
• Stripping range: Ø 0.12 - 0.80 mm (36-20 AWG)
• Adjustable length stop: 5 - 45 mm
• Overall length: 112 mm
• Weight: 45 g
• Body material: glass fibre reinforced polyamide (ESD version)
• Surface resistivity / dissipative: approx. 10^9 Ohm
• Suitable insulation materials: PVC, Teflon, KYNAR, TEFZEL, MYLAR
• Suitable for use in ESD protection zones
• Suitable for right- and left-hand operators
