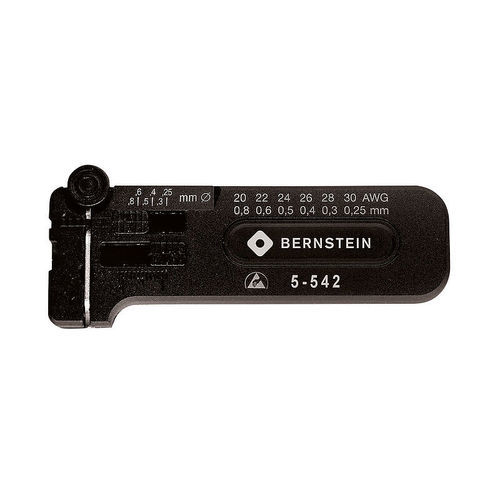

Cutting wire stripper 5-542

multifunctionfor electronicsfor wire

A compact, lightweight precision wire stripper designed for ESD-protected workplaces. The tool is tailored for fine conductor work in electronics and computer technology where electrostatic discharge could damage components.

Key features

• For conductors/strands Ø 0.25 to 0.80 mm (AWG 20–30)
• Stripping range adjustable Ø 0.25 / 0.3 / 0.4 / 0.5 / 0.6 / 0.8 mm
• Includes adjustable length stop
• Integrated cutting device for wires up to Ø 0.8 mm
• Suitable for outer insulation materials: PVC, Teflon, KYNAR, TEFZEL, MYLAR
• Body made of electrostatically dissipative material (≈ 10^5 Ohm)
• TÜV/GS tested
• Changeable blades (stainless steel)
• Length: 102 mm
• Weight: 28 g

Area of application
EPA suitable. For working in electrostatically protected areas (ESD workplace / ESD protection zone). Precision Stripper ESD Plus with a dissipative plastic body for applications where electrostatic discharge could damage components. Particularly suitable in electronics and computer technology for conductors with outer insulation made of PVC, Teflon, KYNAR, TEFZEL, MYLAR. Lightweight, handy mini precision stripping tool.

Technical description
Lever blade interchangeable. TÜV/GS tested. Compact design for fine conductor handling and precise stripping lengths.

Specifications

• Model: 5-542
• Brand: Bernstein
• Stripping range (adjustable): Ø 0.25 / 0.30 / 0.40 / 0.50 / 0.60 / 0.80 mm
• Suitable conductor diameter: 0.25–0.80 mm (AWG 20–30)
• Adjustable length stop: yes
• Cutting capacity: wires up to Ø 0.8 mm
• Suitable insulation materials: PVC, Teflon, KYNAR, TEFZEL, MYLAR
• Body material: electrostatically dissipative (≈ 10^5 Ohm)
• Blades: changeable, stainless steel
• Certification: TÜV/GS tested
• Length: 102 mm
• Weight: 28 g
