Torx screwdriver bit set 4-970-B

Phillipsfor hexagonal-head screwsfor slotted screws

Overview

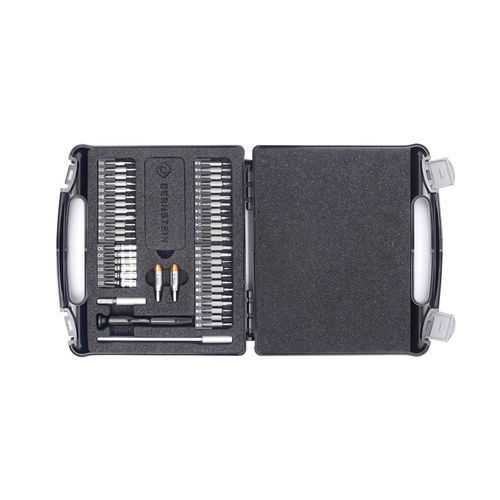

This 47-piece bit set (C4 / 4.0 mm hex) includes two factory-preset torque adapters (0.3 Nm and 0.4 Nm). Delivered in a plastic case with foam insert, the set is designed for precise, repeatable torque application with ESD-capable handling and durable tool materials.

Key features

• Preset torque adapters: 0.3 Nm and 0.4 Nm, tolerance ±10% (factory certificate on request)
• Adapter outer Ø: 8 mm; adapter length: 22 mm (without shank)
• Drive/bit holder: 4.0 mm hex; magnetized bit holder
• Suitable with power tools up to max. 100 rpm (recommended: manual operation)
• Materials: stainless steel and high-quality tool steel; extension made of aluminum
• ESD-capable handle with dissipative resistance range 10^6 to 10^9 ohm
• Delivered in a plastic case with foam insert; case dimensions 175 x 160 x 45 mm; weight 410 g

Area of application
Convert a 4.0 mm C4 bit and a holder into a precision torque tool. The adapters emit a click when the preset torque is reached, preventing overtightening. Primarily intended for manual operation; when used with power tools observe the max. speed recommendation. Note: when loosening screws the adapter does not unlock torque (blocked core shaft), which can result in approximately 30% higher torque when loosening.

Technical description
The adapters are tested to DIN EN ISO 6789 for manually operated torque screwdriving tools and maintain tolerance ±10% for at least 20,000 clicks. The mechanism locks the ratchet in the bushing sleeve; a hollow core shaft and damping cylinder render the core shaft inactive once the preset torque is exceeded so continuous tension on the screw is not further increased. The torque value should be checked periodically with a torque meter.

Content

• 4-973 torque adapter 0.3 Nm for 4 mm bits
• 4-974 torque adapter 0.4 Nm for 4 mm bits
• 6-340-3 C4 bit set, 42 pcs, consisting of:
  • Slotted: 1.0, 1.5, 2.0, 2.5, 3.0
  • Philips: PH000, PH00, PH0, PH1
  • Torx: T3, T4, T5, T6, T7, T8, T9, T10, T15
  • Hex: 0.9, 1.3, 1.5, 2.0, 2.5, 3.0
  • Wrench: 2.5, 3.0, 3.5, 4.0, 4.5, 5.0
  • Triangle: 1.6, 2.0, 2.2, 2.3
  • Square: S0, S1
  • Pentalobe: P2, P5, P6; SIM-eject; Tri-Point: 0, 1
• 6-340-2 bit extension for 4 mm (5/32 inch) hex bits
• 6-340-1 ESD bit holder (dissipative) for 4 mm (5/32 inch) hex bits
• 4-564 bit adapter 1/4" to 4 mm bits, length 42.5 mm

Technical specifications

• Article / model: 4-970-B
• Preset torques: 0.3 Nm and 0.4 Nm; tolerance ±10% (factory certificate on request)
• Durability: tolerance maintained for at least 20,000 clicks (tested to DIN EN ISO 6789)
• Adapter outer Ø: 8 mm; adapter length: 22 mm (without shank)
• Drive / bit holder: 4.0 mm hex (magnetized)
• Extension material: aluminium (with 4 mm bit holder)
• Tool materials: stainless steel and high-quality tool steel
• ESD handle resistance: 10^6 to 10^9 ohm (dissipative)
• Recommended max. speed with power tools: 100 rpm
• Case: plastic case with foam insert
• Dimensions (case): 175 x 160 x 45 mm
• Weight (set): 410 g
