Shaft adapter 4-970-KSB

steelaluminumplastic

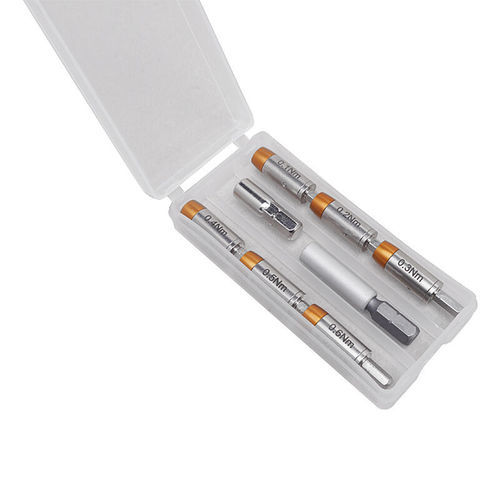

Compact preset torque adapter set for 4 mm (C4) bits, covering small torque values from 0.1 to 0.6 Nm and supplied with two bit adapters in a plastic quadro box. The adapters click when the preset torque is reached and are primarily intended for manual operation; usage with power tools is limited to low speed (max. 100 rpm) to avoid repeated clicks.

Content

• 4-971 torque adapter 0.1 Nm for 4 mm bits
• 4-972 torque adapter 0.2 Nm for 4 mm bits
• 4-973 torque adapter 0.3 Nm for 4 mm bits
• 4-974 torque adapter 0.4 Nm for 4 mm bits
• 4-975 torque adapter 0.5 Nm for 4 mm bits
• 4-976 torque adapter 0.6 Nm for 4 mm bits
• 4-564 bit adapter 1/4" to 4 mm bits, length 42.5 mm
• 4-566 bit adapter 1/4" to 4 mm bits, length 25 mm

Area of application
Turn a 4 mm C4 bit and a holder into a precision torque tool. Suitable where precise small torque settings are required (electronics, quick-change systems, robotic stations, aerospace, medical devices, workbench applications). The adapter prevents overtightening; when loosening a screw no torque unlocking occurs (blocked core shaft).

Technical description
The adapters are tested according to DIN EN ISO 6789 (manually operated torque screwdriving tools) and guarantee a tolerance of ±10% for at least 20,000 clicks. The mechanism uses a hollow core shaft, damping cylinder and mobile ratchet: when the applied torque exceeds the preset torque the core shaft becomes inactive and a click indicates the torque limit has been reached. The torque should be checked regularly with a torque meter.

General information
Torque adapters are commonly used as a compact solution for precise torque control in many industries and workstations.

Characteristics / technical specifications

• Model / series: KSB (set designation: 4-970-KSB)
• Preset torque steps in set: 0.1 / 0.2 / 0.3 / 0.4 / 0.5 / 0.6 Nm
• Tolerance: ±10% (factory certificate on request)
• Adapter diameter: Ø 8 mm
• Adapter length (without shank): 22 mm
• Shank: 1/4 inch hex
• Bit magnetic holder: 4.0 mm
• Bit adapters included: 1/4" to 4 mm (lengths 42.5 mm and 25 mm)
• Holders in set: 1-bit aluminum holder and 1-bit chromed steel holder
• Material: alloyed steel, HRC 43–48
• Packaging: plastic quadro box, dimensions 91 x 43 x 15 mm
• Weight (set): 70 g
• Test standard: DIN EN ISO 6789
• Recommended max. speed with power tools: 100 rpm (use with minimum click repetition)
