Torx screwdriver bit set 4-970-C

Phillipsfor hexagonal-head screwsfor slotted screws

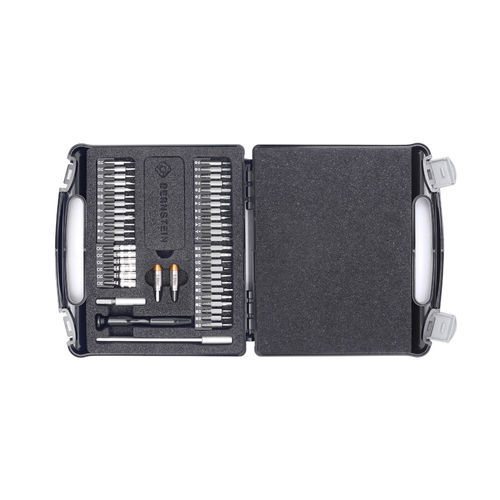

Compact 47-piece C4 bit set (4 mm hex) including two preset torque adapters (0.5 Nm and 0.6 Nm). Supplied in a plastic case with foam insert for secure storage and ESD-safe handling.

Key features

• Preset torque adapters: 0.5 Nm and 0.6 Nm with factory tolerance ±10% (factory certificate available on request).
• Adapter dimensions: outer Ø 8 mm, length 22 mm (without shank). With power tool: max. speed 100 rpm.
• Drive: 4.0 mm hex shank; magnetic bit holder 4.0 mm.
• Materials: stainless steel and high-quality tool steel; extension made of aluminium.
• ESD handle with dissipative range approx. 10^6 to 10^9 Ω.
• Delivered in a plastic case with foam insert for organised storage and transport.
• Case dimensions: 175 x 160 x 45 mm; Weight: 410 g.

Area of application

• Converts any 4 mm C4 bit and holder into a precise low-torque tool. Ideal for electronics, quick-change systems, robotic stations, aerospace, medical electronics and workbenches requiring accurate low torque settings. The adapter locks the ratchet when the preset torque is reached to prevent overtightening. Note: when loosening screws, torque unlocking does not occur (blocked core shaft), which can result in higher loosening torque (approx. +30%).

Technical description

• Adapters tested to DIN EN ISO 6789 (manually operated torque screwdriving tools). Tolerance ±10% for at least 20,000 clicks. Users should check torque values regularly with a torque meter.
• Operating principle: patented system with hollow core shaft, damping cylinder with slot and mobile ratchet. When applied torque exceeds preset value, the core shaft becomes inactive and further torque is not increased, producing an audible click.

Contents / set composition

• 4-975 torque adapter 0.5 Nm for 4 mm bits
• 4-976 torque adapter 0.6 Nm for 4 mm bits
• 6-340-3 C4 Bit set 42 pcs, comprising: Slot 1.0 / 1.5 / 2.0 / 2.5 / 3.0; Cross-recess PH000 / PH00 / PH0 / PH1; Torx T3 / T4 / T5 / T6 / T7 / T8 / T9 / T10 / T15; Hex 0.9 / 1.3 / 1.5 / 2.0 / 2.5 / 3.0; Wrench 2.5 / 3.0 / 3.5 / 4.0 / 4.5 / 5.0; Triangle 1.6 / 2.0 / 2.2 / 2.3; Square S0 / S1; Pentalobe P2 / P5 / P6; SIM-Eject; Tri-Point 0 / 1
• 6-340-2 bit extension for 4 mm (5/32 inch) hex bits
• 6-340-1 ESD bit holder (dissipative) for 4 mm (5/32 inch) hex bits
• 4-564 bit adapter 1/4 to 4 mm bits, length 42.5 mm

Technical specifications

• Article code: 4-970-C
• Set size: 47 pieces (including two torque adapters)
• Torque adapters: 0.5 Nm and 0.6 Nm (preset), tolerance ±10%
• Adapter dimensions: Ø 8 mm, length 22 mm (without shank)
• Drive / holder: 4.0 mm hex shank; magnetic bit holder 4.0 mm
• Materials: stainless steel and high-quality tool steel; aluminium extension
• ESD handle resistance: approx. 10^6 to 10^9 Ω (dissipative)
• Case dimensions: 175 x 160 x 45 mm
• Weight (set): 410 g
• Standards: tested to DIN EN ISO 6789 for manually operated torque screwdriving tools
