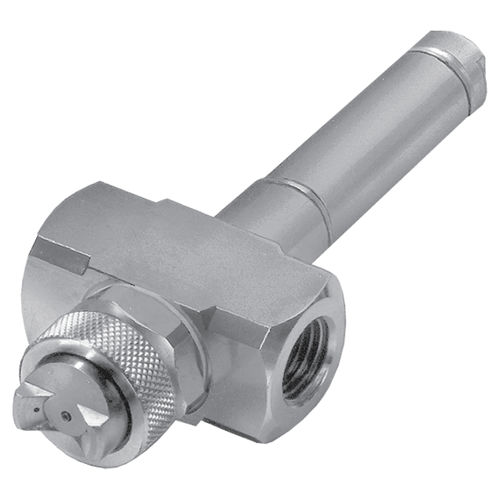

Spray nozzle XAEF series

for liquidsflat spraystainless steel

External Mix, Pressure-Fed Pneumatic Spray Nozzles DESIGN FEATURES External mix: allows spraying of viscous materials Variable atomization Precise metering of the liquid flow rate HOW SPRAY PATTERN IS ACHIEVED In a pressure-fed system, the liquid is supplied under pressure to either internal or external mix BETE XA Series nozzles. Air and liquid regulators control the fluid delivery pressure, while the air filter and liquid strainer ensure that the supplied fluids are high quality. Operational control is maintained by manual or solenoid valves used in conjunction with the various hardware assemblies. The air and liquid streams exit the nozzle independently through each orifice, creating a fan spray pattern. Air and liquid flow rates can be controlled independently, allowing precise liquid metering.
