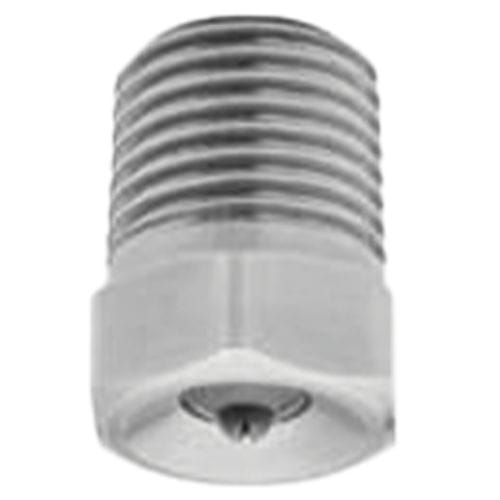

Spray nozzle NFH seriesfor liquidsflat spraytungsten carbide
Add to favorites
Compare this product
Characteristics
- Function
- spray
- Fluid
- for liquids
- Stream
- flat spray
- Material
- tungsten carbide, stainless steel
- Applications
- for the food industry, for the steel industry, for the chemical industry, fire protection, refueling, for petrochemical applications, for the mining industry, for water treatment
- Spray angle
- 50°, 60°, 90°, 55°, 120°, 75°, 70°, 45°, 30°, 40°, 80°, 110°, 20°, 10°, 100°
- Other characteristics
- NPT, male, high-impact, BSP
- Orifice diameter
Min.: 0.01 mm
(0 in)Max.: 0.08 mm
(0 in)- Flow
Min.: 0.01 us gal/min
(0.04 l/min)Max.: 4.33 us gal/min
(16.39 l/min)- Pressure
Min.: 30 psi
Max.: 1,000 psi
Description
High Impact Spray Nozzles for Maximum Life and Wear Resistance
DESIGN FEATURES
Tungsten carbide orifice inserts for maximum wear resistance and service life
HOW SPRAY PATTERN IS ACHIEVED
A thin flat sheet of liquid is produced when the fluid exits the orifice, and the spray begins to widen and gradually moves outward from the nozzle
Catalogs
NFH
1 Pages
