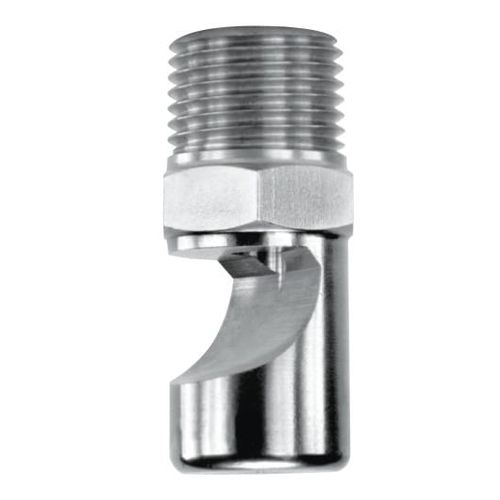

Spray nozzle AFF seriesfor waterflat spraystainless steel
Add to favorites
Compare this product
Characteristics
- Function
- spray
- Fluid
- for water
- Stream
- flat spray
- Material
- stainless steel, brass
- Applications
- for the food industry, for the steel industry, for the chemical industry, fire protection, refueling, for petrochemical applications, for the mining industry, for water treatment
- Spray angle
- 75°, 145°
- Other characteristics
- NPT, male, BSP, discharge
- Orifice diameter
Min.: 5.3 mm
(0.21 in)Max.: 11.5 mm
(0.45 in)- Flow
Min.: 6.72 us gal/min
(25.44 l/min)Max.: 69.7 us gal/min
(263.84 l/min)- Pressure
50 psi, 75 psi, 100 psi, 125 psi, 150 psi
Description
AFF FLAT FAN FIRE PROTECTION NOZZLES
FM Approved Nozzles for Water Mist and Offshore Fire Suppression
DESIGN FEATURES
One-piece construction
Clog-resistant
All 1/2" AFF NPT nozzles require a line strainer designed to entrap material 1/8" and larger.
All AFF nozzles are Factory Mutual approved
HOW SPRAY PATTERN IS ACHIEVED
The spray pattern is formed by deflecting off an external surface, creating an extra-wide fan spray pattern
Spray discharge deflected 75° from the inlet axis
