Balanced spool pneumatic directional control valve CETOP seriespneumatically-operatedsolenoid-operated5/2-way
Add to favorites
Compare this product
Characteristics
- Type
- balanced spool
- Actuating method
- pneumatically-operated, solenoid-operated
- Ports/positions
- 5/2-way, 5/3-way
- Process connection
- 1/2", 1/4", 1/8", 3/8"
- Other characteristics
- anodized aluminum, manifold, in-line, CETOP
- Operating pressure
Max.: 10 bar
(145.04 psi)Min.: 1 bar
(14.5 psi)- Flow rate
Max.: 4,600 l/min
(1,215.2 us gal/min)Min.: 510 l/min
(134.7 us gal/min)- DN
5 mm, 8 mm, 12 mm
(0.197 in, 0.315 in, 0.472 in)
Description

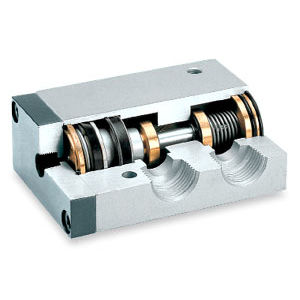

CETOP series valves balanced spool type, represent the best solution when spool valves with great reliability are necessary. They are available in the versions with pneumatic operation and solenoid operation, with ports of 1/8”G, 1/4”G, 3/8”G, 1/2”G and they have the body in anodized aluminium and the spool in aluminium chemical nickel plated. Mounting is possible on manifolds or in line and on panel through the holes in valve body
