spool pneumatic directional control valve / pneumatic / 5/2 / aluminium

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
spool pneumatic directional control valve / pneumatic / 5/2 / aluminium spool pneumatic directional control valve / pneumatic / 5/2 / aluminium
{{requestButtons}}

Characteristics

  • Type:

    spool

  • Actuating method:

    pneumatic

  • Ports/positions:

    5/2

  • Other characteristics:

    aluminium, brass

  • Flow rate:

    1,560 l/min (412 us gal/min)

  • Operating pressure:

    Min.: 2 bar (29 psi)

    Max.: 10 bar (145 psi)

Description

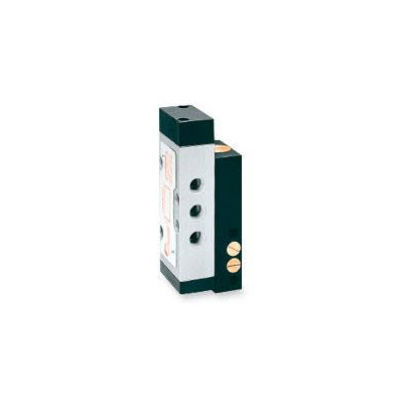

Anti-repeater
The anti-repeater COMBI-4 is a 5/2 ways pneumatic valve that commutates the outgoing signals when it receives at the same time two permanent pneumatic signals with maximum time interval of 0.4 sec. The outgoing signal stops whether one external signal is switched off. It is available with 1/4”G port; the body is in aluminium and brass and the spool is in aluminium chemical nickel plated.
