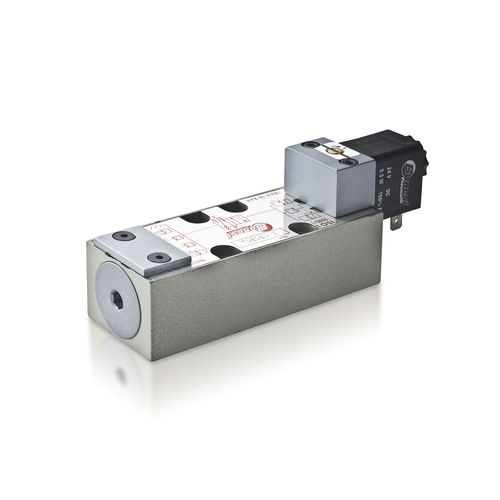

Balanced spool pneumatic directional control valve ISO seriespneumatically-operatedsolenoid-operated5/2-way
Add to favorites
Compare this product
Characteristics
- Type
- balanced spool
- Actuating method
- pneumatically-operated, solenoid-operated
- Ports/positions
- 5/2-way, 5/3-way
- Other characteristics
- anodized aluminum, with sub-base, ISO 5599, zamak
- Operating pressure
Max.: 10 bar
(145.04 psi)Min.: 1 bar
(14.5 psi)- Flow rate
Max.: 1,780 l/min
(470.2 us gal/min)Min.: 510 l/min
(134.7 us gal/min)- DN
5 mm, 8 mm
(0.197 in, 0.315 in)
Description
ISO series balanced spool valves are made in compliance with ISO 5599/1 Standards. The respect of these rules guarantees interchangeability and great flexibility. They are available with electrical and pneumatic operation, with size ISO1 and ISO2. The body is made of die-casted zamak while the spool is of anodized aluminium. Mounting is possible on multiple sub-bases.
