poppet pneumatic directional control valve / pneumatic / 3/2 / 5/2
A series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

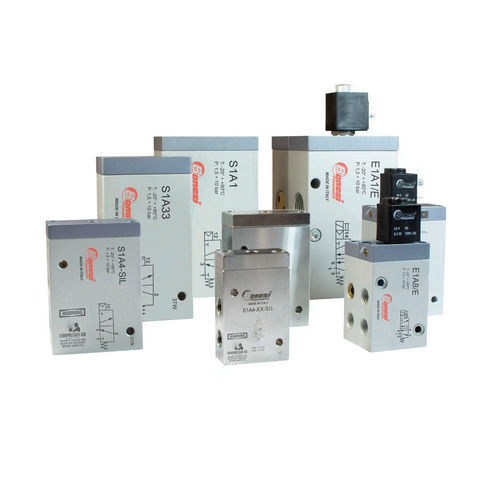

poppet pneumatic directional control valve / pneumatic / 3/2 / 5/2 poppet pneumatic directional control valve / pneumatic / 3/2 / 5/2 - A series
{{requestButtons}}

Characteristics

  • Type:

    poppet

  • Actuating method:

    pneumatic

  • Ports/positions:

    3/2, 5/2, 2/2

  • Other characteristics:

    standard

  • Flow rate:

    Max.: 13,500 l/min (3,566 us gal/min)

    Min.: 650 l/min (172 us gal/min)

  • Operating pressure:

    Max.: 10 bar (145 psi)

    Min.: 2 bar (29 psi)

Description

A poppet series valves represent the best choice when valves with great flow rates are necessary. They are dedicated both to the treatment of COMPRESSED AIR and VACUUM and are available with electrical or pneumatic operations with connections of 1/8”G, 1/4"G, 1/2"G, 3/4”G, 1”G. The standard bodies 2/2-3/2 can be combined to create 5/2 ways valves. Mounting is possible on manifolds or in line and on panel through the holes in valve body.
