direct-operated solenoid valve / 2/2 / air / with sub-base

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
direct-operated solenoid valve / 2/2 / air / with sub-base direct-operated solenoid valve / 2/2 / air / with sub-base
{{requestButtons}}

Characteristics

  • Control:

    direct-operated

  • Ports/positions:

    2/2

  • Medium:

    air

  • Body:

    with sub-base, stainless steel

  • Temperature:

    Max.: 50 °C (122 °F)

    Min.: -10 °C (14 °F)

  • Pressure:

    Max.: 10 bar (145 psi)

    Min.: 1 bar (14.5 psi)

  • DN:

    1.2 mm, 1.5 mm (0.047 in)

  • Voltage:

    12 V, 24 V

Description

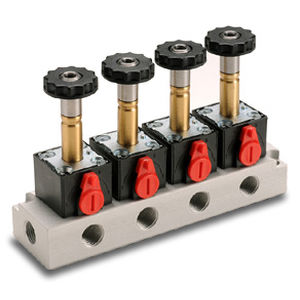

Direct control valves 2/2 or 3/2 are used for operation of pneumatic cylinders with little bore size or for auxiliary functions. Available in the version with solenoid operation , with M5 and 1/8” ports , they have a sub–base in anodized aluminium with core in stainless steel and brass. Mounting is possible on manifolds or in line and on panel through the holes in the valve body.
