VSI crusher BLV900-E4

mobilesand productionvertical-axis

Product Overview

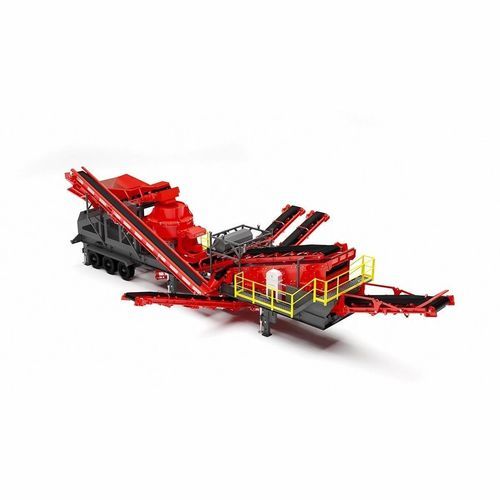

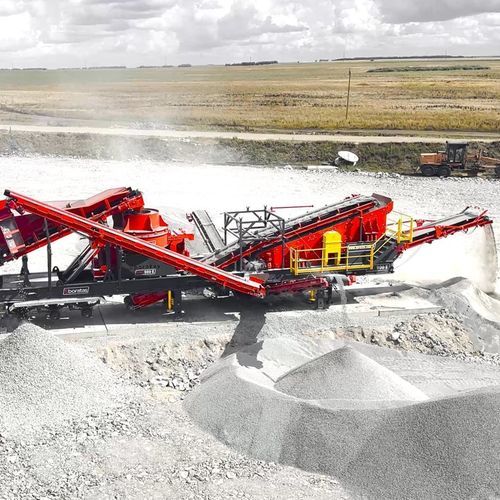

Borataş® Wheel-Mounted Vertical Shaft Crusher & Vibrating Screen BLV900-E Series is specially designed for the production of fine, cubical-shaped materials (sand) in the 0-5 mm range. After primary and secondary crushing, materials up to 38 mm in size can be fed into the system. Mobile unit provides ease of transport, reduced transport costs and rapid commissioning with a single operator; customized versions can be tailored to specific needs.

Specifications
Capacity: 200 – 300 t/h
Screen Deck: 4
Max. Feed Size: 38 mm
Rotor Diameter: Ø900
Weight: 56000 kg
Transport Dimensions: 21,500 x 4,650 x 4,600 mm
Operating Dimensions: 22,670 x 15,000 x 6,100 mm

BLV900-E4 Characteristics

• High Efficiency and Capacity: Production capacity up to 300 tons per hour; robust rotor system and high-speed crushing technology for optimal output and desired product sizes.
• Closed Rotor Design: Minimizes material loss, enhances energy efficiency and provides durable components for abrasive materials.
• Integrated Screening System: Integrated screening unit for precise material classification; adjustable screening mechanism to meet site requirements.
• Mobility and Easy Transport: Mounted on a wheeled chassis for easy mobility and rapid on-site setup; ideal for short-term projects or frequent relocations.
• Low Operating Costs: VSI closed rotor system reduces energy consumption and uses long-lasting components to minimize maintenance costs.
• Advanced VSI Crusher Component: Vertical Shaft Impact (VSI) closed rotor crusher that propels material against a fixed surface using centrifugal force to produce fine, uniform, cubical particles; adjustable to fine-tune performance for various materials.

Standard Features

• VSI series high-capacity, efficient vertical shaft crusher
• 3- or 4-deck vibrating screen
• Hydraulic foldable conveyor belts
• Wireless remote control
• PLC control system
• Electric-powered operation
• Gear-driven conveyor belts

Optional Features

• Magnetic metal separator
• Hardox-lined hopper
• Automatic lubrication system
• Dust reduction system

caractéristiques / spécifications techniques

• Model: BLV900-E4
• Capacity: 200 – 300 t/h
• Screen Decks: 4 (integrated screening)
• Max. Feed Size: 38 mm
• Rotor Diameter: Ø900
• Weight: 56,000 kg
• Transport Dimensions (L x W x H): 21,500 x 4,650 x 4,600 mm
• Operating Dimensions (L x W x H): 22,670 x 15,000 x 6,100 mm
• Product Range: Fine, cubical-shaped sand in the 0-5 mm range
• Design: Closed rotor VSI crusher for reduced material loss and optimized efficiency
• Mobility: Wheel-mounted chassis for easy transport and site setup
• Drive & Controls: Electric-powered operation, PLC control, wireless remote control
