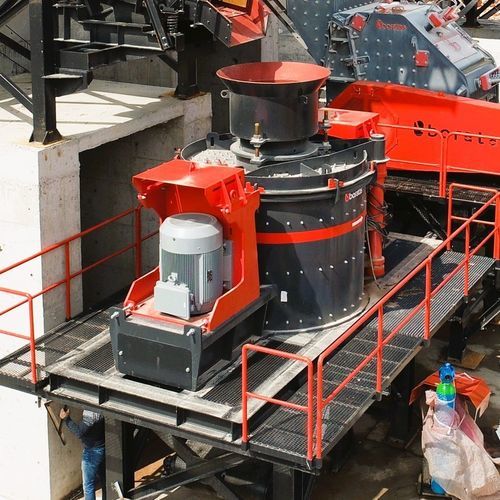

Vertical-shaft impact crusher VSI1200

stationarysand productionvertical-axis

Overview
The Boratas VSI1200 is the highest-capacity model in the open-rotor vertical shaft impact (VSI) crusher series, engineered for fine crushing where particle shape and grading are critical. It is suitable for producing manufactured sand and high-quality aggregates, and for continuous high-output operations in large aggregate plants and industrial sand facilities.

Key Capabilities
The VSI1200 supports rock-on-rock and rock-on-anvil configurations. Adjustable rotor speed and configurable crushing chamber components allow precise control of product size, shape and grading. The machine includes advanced wear protection and heavy-duty construction to reduce downtime and maintenance frequency. Safety access doors and optional monitoring systems simplify inspection and service.

VSI1200 Characteristics

• Superior crushing capacity for high-throughput operations.
• Oversized 1200 mm open rotor for stronger impact forces and improved crushing dynamics.
• Customizable rotor speed and internal components to target desired particle shape and grading.
• Wear-resistant parts and efficient energy usage to lower operating costs in abrasive conditions.
• Designed for easy maintenance with wide access hatches and safe rotor access.

Standard Features

• 1200 mm open rotor
• Adjustable rotor speed
• Replaceable anvils or rock shelves
• Heavy-duty steel frame
• Full maintenance access
• Wear-resistant chamber liners

Optional Features

• Automatic lubrication system
• Dust suppression system
• Rotor vibration monitoring
• Anvil ring set
• Extended feed hopper

Applications
Fine crushing where controlled particle shape and consistency are required; production of manufactured sand and high-quality aggregates; large-scale aggregate production and industrial sand manufacturing.

Technical specifications

• Rotor Size: 1200 mm
• Max Material Size: 100 mm
• Capacity: 200 – 500 t/h
• Engine Power: 250 – 315 – 355 kW
• Weight: 19,000 kg
