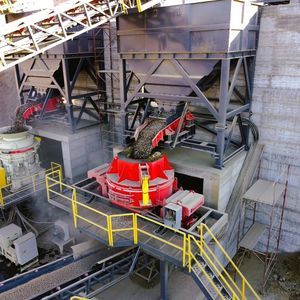

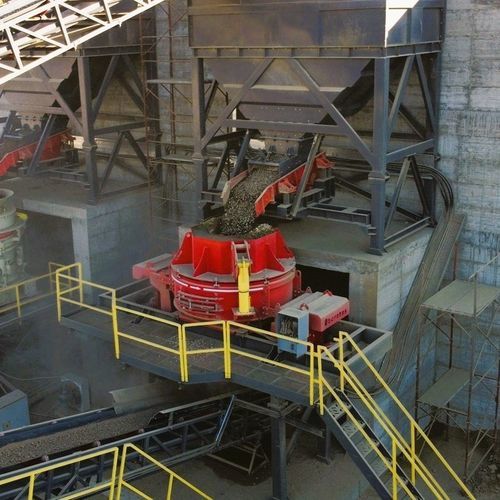

Vertical-shaft impact crusher VSI700

mobilesand productioncompact

Product overview
The Borataş® VSI 700 is part of the Closed Rotor Vertical Shaft Impact Crusher series and is engineered to produce superior final product shape within a compact footprint. Its closed-rotor configuration optimizes impact energy transfer while limiting dust and wear, making it suitable for fine aggregate and manufactured sand production as well as secondary and tertiary crushing of medium-hard to hard materials such as basalt and granite. The machine combines a robust rotor, abrasion-resistant linings and a motor range that balances performance and energy use. Designed for confined installations and mobile platforms, the VSI 700 also features simplified maintenance access to reduce downtime.

VSI700 Characteristics

• Closed Rotor Design: High-speed closed rotor delivers concentrated impact energy for improved shaping and fragmentation while reducing dust generation and protecting wear components.
• Excellent Shaping Capability: Vertical shaft geometry ensures even material distribution and consistent cubicity, suitable for applications requiring well-shaped aggregates.
• Durable Construction: Wear parts and critical components are manufactured from abrasion-resistant materials to withstand heavy-duty operation and extend service intervals.
• Compact Footprint: Small installation envelope allows integration into plants with limited space and on mobile or skid-mounted units.
• Energy-Efficient Operation: Available motor range (132–160 kW) enables operators to match power consumption to required throughput.

Standard Features

• Closed rotor system
• Inspection doors and maintenance access points
• Central feed with rotor bypass capability
• Replaceable wear linings
• Vibration monitoring

Optional Features

• Automatic lubrication system
• Dust suppression system
• Soft starter panel
• Dual motor drive
• Mobile chassis or skid-mounted base

Specifications
Rotor Size: 700 mm
Max Material Size: 28 mm
Capacity (min–max): 40 – 140 t/h
Engine Power: 132 – 160 kW
Weight: 7,500 kg

Technical specifications

• Model / Series: Borataş® VSI 700 (Closed Rotor Vertical Shaft Impact Crusher series)
• Rotor Size: 700 mm
• Maximum feed (Max Material Size): 28 mm
• Capacity range: 40 – 140 t/h
• Engine / Motor power range: 132 – 160 kW
• Machine weight (approx.): 7,500 kg
• Primary applications: Fine aggregates production, manufactured sand, secondary/tertiary crushing of medium-hard to hard materials (e.g., basalt, granite, abrasive minerals)
• Key attributes: Closed rotor design, abrasion-resistant wear parts, compact footprint, simplified maintenance access, energy-efficient operation
