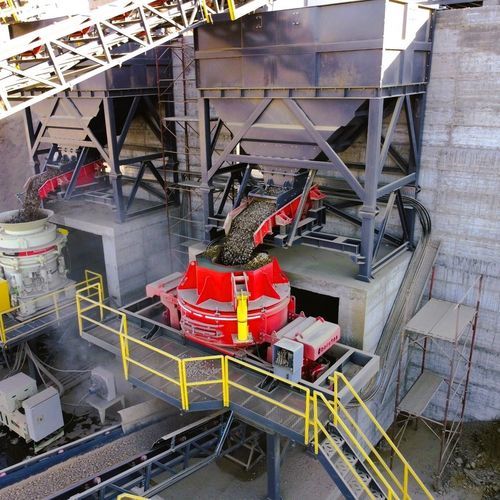

Vertical-shaft impact crusher VSI900

stationarysand productionvertical-axis

Overview
The Borataş® VSI900 is a stationary vertical shaft impact (VSI) crusher designed for high-volume tertiary crushing and precise product shaping. Designed for hard and abrasive materials, the enclosed-rotor VSI900 produces cubical aggregate and manufactured sand for concrete, asphalt and other fine material applications. The crusher supports rock-on-rock and rock-on-steel crushing principles with adjustable rotor speed and cascade settings to control particle shape and size.

Specifications
Rotor size: 900 mm
Maximum feed size: 38 mm
Capacity: 100–300 t/h
Engine/motor power options: 160 kW, 200 kW, 250 kW
Approx. weight: 14,000 kg

Key Characteristics

• Precise final product shaping - Enclosed rotor and controlled cascade deliver consistent cubical particles suitable for concrete and asphalt production.
• Closed-rotor efficiency - Enclosed rotor design improves energy transfer and reduces wear in abrasive operations.
• Adjustable performance - Rotor speed and cascade ratio can be tuned to target specific particle shapes and sand fractions.
• Robust component design - Heavy-duty bearings, modular construction and replaceable wear parts (anvils/ceramics) for extended service life.
• Flexible installation - Suitable for fixed or semi-mobile plants; compact footprint for multi-stage configurations.

Standard Features

• 900 mm enclosed rotor
• 160–250 kW motor options
• Rock-on-rock or rock-on-steel crushing setup
• Replaceable anvils and wear parts
• Top-mounted access for maintenance
• Adjustable rotor speed

Optional Features

• Vibration sensor and monitoring unit
• Automatic lubrication system
• Dust suppression spray system
• Smart control panel integration

Technical specifications

• Model: VSI900
• Rotor size: 900 mm
• Maximum feed size: 38 mm
• Capacity range: 100–300 t/h
• Motor power options: 160 kW, 200 kW, 250 kW
• Weight (approx.): 14,000 kg
• Crushing principles: rock-on-rock or rock-on-steel
• Rotor type: closed/enclosed rotor
• Wear parts: replaceable anvils and ceramic options
• Maintenance: top-mounted access to internal components
• Adjustability: rotor speed and cascade ratio control
• Installation: suitable for fixed or semi-mobile plants
