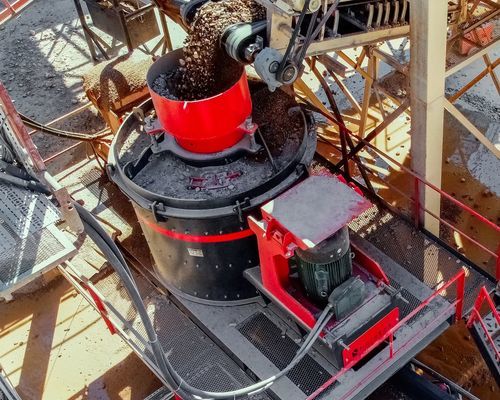

Vertical-shaft impact crusher VSI1000

stationarysand productionfine

Product overview
The Borataş® VSI1000 is a vertical shaft impact crusher engineered for high-volume operations where precise aggregate shape, consistent performance and operational flexibility are required. It is designed to produce high-quality manufactured sand and well-graded fine aggregates. The machine accepts both rock-on-rock and rock-on-anvil configurations, offers adjustable rotor speed, efficient energy usage, heavy-duty construction and simplified maintenance access. Optional wear monitoring and auxiliary systems improve uptime and service planning.

Specifications

• Rotor Size: 1000 mm
• Max Material Size: 80 mm
• Capacity (min–max): 100 – 350 t/h
• Engine Power: 160 / 200 / 250 kW
• Weight: 17,500 kg

VSI1000 Characteristics

• Superior production efficiency: High throughput while maintaining target particle shape and gradation for aggregate production.
• Flexible crushing configurations: Operates in rock-on-rock and rock-on-anvil modes; internal settings and rotor speed are adjustable to meet specific application requirements.
• Optimized rotor dynamics: 1000 mm rotor design maximizes impact energy transfer for improved fragmentation and reduced energy loss.
• Designed for durability: Reinforced structure and replaceable wear components extend service life under continuous operation.
• Accessible maintenance and safety: Wide maintenance doors and front/side access points simplify inspections and service tasks, improving uptime.

Standard Features

• 1000 mm open rotor
• Interchangeable anvils and rock shelf
• Adjustable rotor speed
• Heavy-duty steel construction
• Wide maintenance doors
• Replaceable wear parts

Optional Features

• Automatic lubrication system
• Dust suppression system
• Rotor balancing sensors
• Anvil ring kit
• Feed hopper extensions

Applications and benefits
Suitable for industrial minerals, manufactured sand, asphalt and concrete aggregate production. The VSI1000 provides process control, consistent product quality and the ability to tailor output through chamber and rotor adjustments.

Technical specifications

• Model: VSI1000
• Rotor diameter: 1000 mm
• Maximum feed size: 80 mm
• Throughput capacity: 100–350 t/h
• Drive power options: 160 / 200 / 250 kW
• Operating configurations: rock-on-rock and rock-on-anvil
• Machine weight: 17,500 kg
• Construction: heavy-duty steel with replaceable wear parts
• Maintenance access: front and side access points, wide maintenance doors
• Optional systems: wear monitoring, automatic lubrication, dust suppression, rotor balancing sensors
