Chemical pump NOVAPLEX Vector
electricdiaphragmindustrial

chemical pump
chemical pump
chemical pump
chemical pump
Add to favorites
Compare this product


Characteristics

Fluid
for chemicals
Operation
electric
Technology
diaphragm
Domain
industrial
Applications
control, process
Material
PTFE
Fluid specification
for aggressive media
Other characteristics
compact
Flow

65,000 l/h, 70,000 l/h (17,171.1834 us gal/h)

Pressure

400 bar, 1,000 bar (5,801.51 psi)

Description

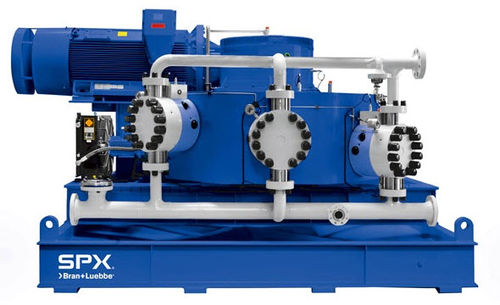

The NOVAPLEX Vector process diaphragm pump combines the reliability of the Bran+Luebbe diaphragm technology with a compact unique gearbox design. This allows for the use of a process diaphragm pump for applications where a small foot print is required. An interface for the NOVALINK CSM on-line diagnosis system is integrated. Max. capacity : up to 70.000 l/h Max. operating pressure : up to 400 bar with PTFE diaphragm up to 1000 bar with metal diaphragm High reliability with proven B+L diaphragm pump technology with Positive Diaphragm Position Control (PDPC) Flow rate adjustment by variable speed drive Integrated interface for NOVALINK CSM on-line diagnosis system Minimized life-cycle cost Minimized downtime for maintenance Benefits Reasons to consider the Vector Process Pump Small foot print due to compact design Low noise due to utilization of 4- resp. 6-poles motors Less weight Less maintenance effort
