pilot-operated solenoid valve / 2-way / NC / water
84 series

Add to MyDirectIndustry favorites
Compare this product

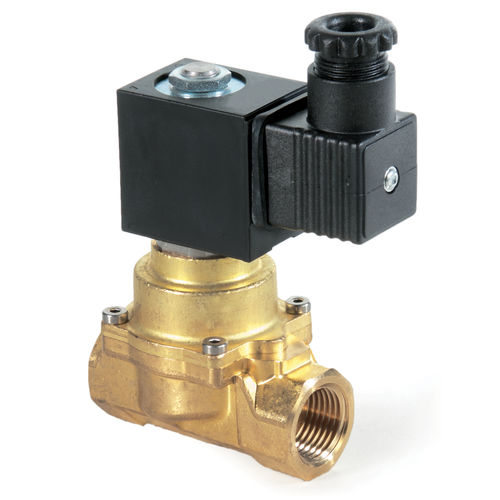

pilot-operated solenoid valve / 2-way / NC / water pilot-operated solenoid valve / 2-way / NC / water - 84 series
{{requestButtons}}

Characteristics

  • Control:

    pilot-operated

  • Ports/positions:

    2-way

  • Function:

    NC

  • Medium:

    water, for steam

  • Body:

    threaded, brass, stainless steel

  • Temperature:

    Min.: -10 °C (14 °F)

    Max.: 150 °C (302 °F)

  • Pressure:

    Min.: 0 bar (0 psi)

    Max.: 15 bar (217.6 psi)

  • DN:

    Min.: 15 mm

    Max.: 32 mm

Description

Threaded joints ISO228 BSP F/F, the body in brass CW617N, magnetic parts in stainless steel and the seal in FKM (Viton®)
YES: for water up to 150°C. NO: for gas and steam. No need for a minimum operating pressure.
NC with FKM seal The 84 series consists of solenoid valves, with mixed action, 2-way, normally closed (NC). Suitable for thermo-hydraulic plants, dish washers, hydro cleaners.
