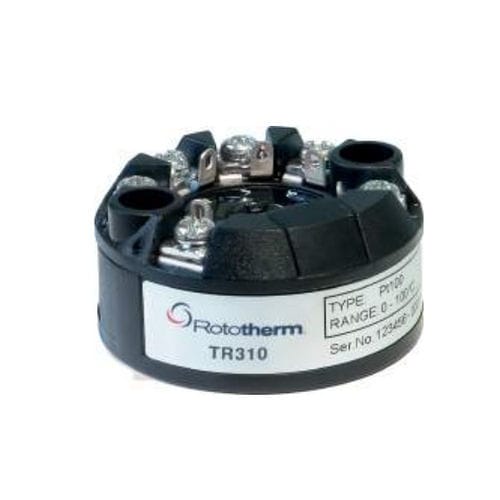

HART temperature transmitter TR310

RTDthermocouple2-channel

The TR310 is a HART 5,6,or 7 compatible universal transmitter. It accepts RTD, Thermocouple, Potentiometer or millivolt input signals and converts them to the industry standard (4 to 20) mA transmission signal. Alternatively HART multidrop mode can be selected. The TR310 is programmed using a simple USB lead and uses our free configuration software download from our web site. Standard features can also be programmed using HART communication. Sensor referencing The TR310 sensor referencing via the Windows based USBSpeedlink software allows for close matching to a known reference sensor eliminating possible sensor errors. User calibration In addition to sensor referencing, user offset and current output trimming is possible via the USB and HART commands. Custom linearisation The TR310 to be programmed with a custom linearisation to suit nonstandard sensors or sensors with unusual or unique characteristics. Consult the sales office for details. Sensor burn out detection If a sensor wire is broken or becomes disconnected the TR310 output will automatically go to its user defined level (upscale or downscale) or pre-set value. Output current preset For ease of system calibration and commissioning the output can be set to a pre-defined level anywhere within the (4 to 20) mA range. Hart@ Registered trademark of the HART Communication Foundation.
