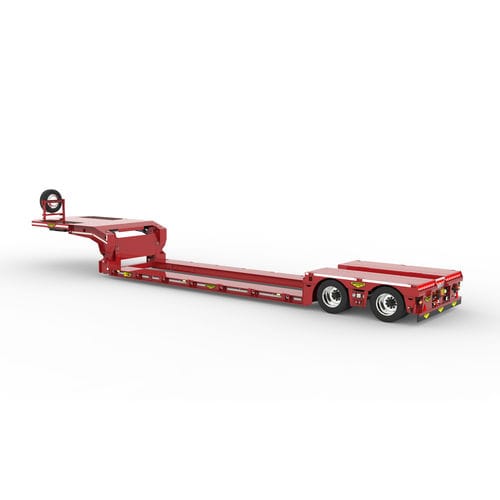

2-axle semi-trailer
containergooseneckair-suspension

2-axle semi-trailer
2-axle semi-trailer
Add to favorites
Compare this product


Characteristics

Number of axles
2-axle
Type
container, gooseneck, air-suspension
Other characteristics
extendable, with hydraulic suspensions, low-loader
Payload

27.5 t (30.31 us ton)

Description

2-axle SL low loader Super-Low manoeuvrable low loader The SL low loader is a true all-rounder. The big advantage of the SL low loader with independent suspension is that the SL bogie is lower than with beam axles or pendular axles. This is ideal for bogie-overhanging cargo because there is a minimum height difference between the extremely low bed and the low bogie. This means you do not have to extend the trailer as far (often as much as 1.5 m). And with the innovative SL2 system, you can drive with any ride height without affecting tyre wear. The ease of operation and quality are as you would expect from Broshuis! Of course, it is also possible to develop a unique, customised semi trailer! Consider for instance double extension, a different bed or a fixed neck as options. General specifications Single- or double-extendible Independent suspension Hydraulic suspension Hydraulically steered 12 T per axle in most European countries Low-maintenance steering control system App. 27.5 T load capacity Technical specifications 23 T kingpin load 18 T bogie load App. 13.5 T tare weight 57° steering angle 280 mm loading height 100 mm ground clearance Width 2.550 mm Fully automatic alignment system Removeable and adjustable neck Container position extendible up to 40 ft Beams equipped for detachable floor Outrigger ready Within the legal dimensions Ultra-low bogie
