6-axle trailer

towedfor industrial materialsoff-road

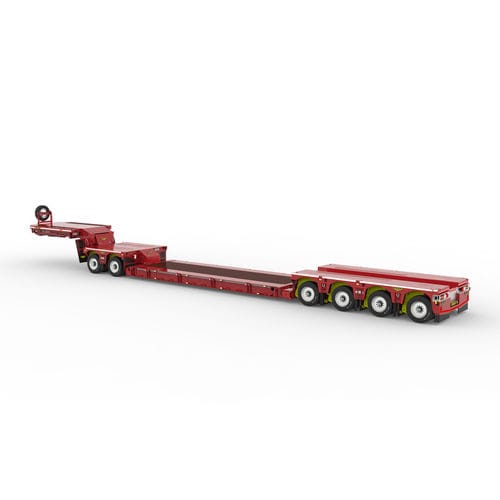

2+4 PL2 HD dolly low loader combination Can be supplied in a range of designs, for virtually any terrain Our 2+4 PL2 HD pendle axle dolly low loader combination is characterised by its functionality and durability. Thanks to the high stroke of the PL2 HD pendle axles, the combination is ideally suited for off-road use. Its easy operation, maintenance and service life are priorities for our pendle axle low loaders. The specifications below are for a 2+4 As you have come to expect from us, you can also get a 2+4 according to your specifications. Consider for instance a central beam version. We will be happy to help you configure your own low loader combination . You can contact one of our employees for this at any time with no obligation. General specifications Removable dolly Optional central beam or outer beam 285 tires Extendible bogie, for greater flexibility Large stroke of 600 mm Tower bearing, low-maintenance and -MOT App. 86,1 T load capacity Technical specifications 25 to 35 T kingpin load 84,3 T bogie load App. 34 T tare weight 14 T per axle line technically 70° steering angle (with 2850 mm width of the bogie) Bed height from 400 mm possible Expandable to 3000 mm Fully automatic alignment system Hatz diesel generator BPW axles with Broshuis pendle arm
