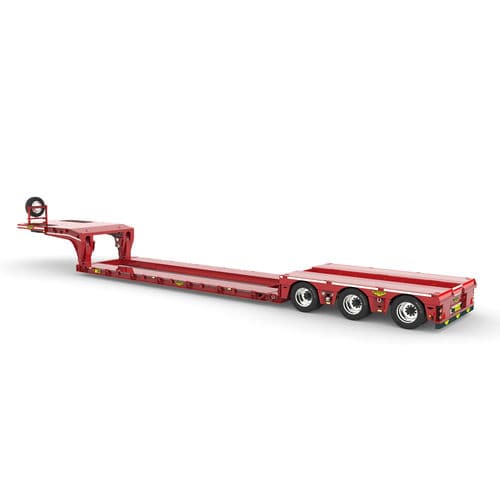

3-axle semi-trailer
towedextendablewith hydraulic suspensions

3-axle semi-trailer
3-axle semi-trailer
Add to favorites
Compare this product


Characteristics

Number of axles
3-axle
Mounting
towed
Other characteristics
extendable, with hydraulic suspensions, low-loader
Payload

36.5 t (40.23 us ton)

Description

3-axle SL low loader Super-low manoeuvrable low loaders The big advantage of the SL low loader is that its low bed is extremely low and also the bogie is lower than in the case of continuous axles or pendle axles, ideal for loads overhanging the bogie. A tonnage of 12 tonnes per axle line is permitted in most countries. Ease of operation and quality is as you would expect from Broshuis! Of course, it is also possible to develop your completely innovative semi-trailer! For instance, you can choose a double extendable cargo bed or a dolly at the front end. General specifications Single extendible Independent suspension Hydraulic suspension Hydraulically steered 12 T per axle line in most European countries Low-maintenance steering control system App. 36.5 T load capacity Technical specifications 25 T kingpin load 30 T bogie load App. 19.5 T tare weight 57° steering angle 290 mm bed height Width 2.730mm Automatic alignment system 2-beam neck Removeable and adjustable neck Beams equipped for detachable floor Outrigger ready Ultra-low bogie for load over the bogie Crane arm recess
