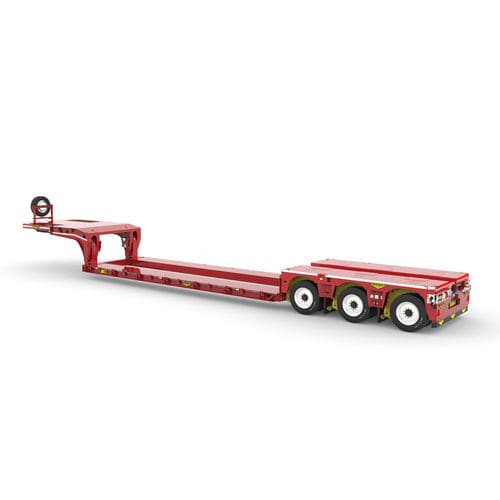

Gooseneck semi-trailer
3-axletowedlow-loader

gooseneck semi-trailer
gooseneck semi-trailer
Add to favorites
Compare this product


Characteristics

Type
gooseneck
Number of axles
3-axle
Mounting
towed
Other characteristics
low-loader, compact, off-road
Payload

42.5 t (46.85 us ton)

Description

3-axle line PL2 HD pendular axle low loader The optimal solution... especially on rough terrain Our 3-axle line PL2 HD pendular axle low loader is characterised by its functionality. With our years of experience building low loaders, we have successfully designed the ultimate low loader that every driver will be happy to tow. With its long suspension stroke, the 3 PL2 HD pendular axle low loader is also suitable for off-road. Its easy operation and service life are priorities for our pendular axle low loaders. You can also configure a unique trailer, of course. For example, you can choose a central beam, a dolly, a narrower cargo bed or a double-extendible cargo bed. General specifications Single extendible Outriggers 285 tires Short, compact bogie Extendible bogie for greater flexibility Long suspension stroke of 600 mm App. 42,5 T load capacity Technical specifications 25 T kingpin load 36 T bogie load App. 20 T tare weight 12 T per axle line 300 mm bed height Width 2,730 mm Fully automatic alignment system Removeable and adjustable gooseneck Outrigger ready Beams equipped for detachable floor
