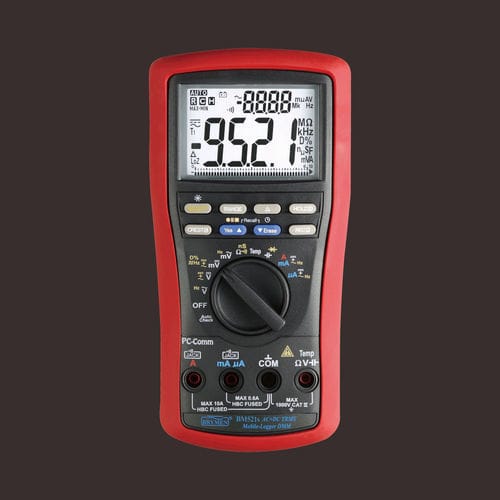

Cat IV multimeter BM521s
10000 count digitalportable1000 V

Cat IV multimeter - BM521s - BRYMEN - 10000 count digital / portable / 1000 V
Cat IV multimeter - BM521s - BRYMEN - 10000 count digital / portable / 1000 V
Add to favorites
Compare this product

Characteristics

Display
10000 count digital
Form
portable
Max voltage
1000 V
Max current
10 A
Safety rating
cat IV
Additional features
frequency, with thermometer
Protection level
EMC
Other characteristics
AC/DC, true RMS
Max DC voltage

Max.: 999.9 V

Min.: 0.06 V

Max AC voltage

Max.: 999,900 mV

Min.: 60 mV

Max DC current

Max.: 10,000 mA

Min.: 0.6 mA

Max AC current

Max.: 10,000 mA

Min.: 0.6 mA

Max resistance measure

Max.: 60,000,000 Ohm

Min.: 600 Ohm

Max capacity measure

Max.: 25,000,000 nF

Min.: 60 nF

Max frequency measure

Max.: 1,000,000 Hz

Min.: 5 Hz

DC voltage precision

Max.: 0.12 %

Min.: 0.08 %

AC voltage precision

Max.: 2 %

Min.: 0.5 %

DC current precision

0.2 %

AC current precision

Max.: 1 %

Min.: 0.6 %

Resistance precision

Max.: 1.5 %

Min.: 0.1 %

Process temperature

Max.: 45 °C
(113 °F)

Min.: 0 °C
(32 °F)

Length

208 mm
(8.19 in)

Width

103 mm
(4.06 in)

Height

64.5 mm
(2.54 in)

Weight

635 g
(22.4 oz)

Description

Mobile Logger Supports Multi-session, More Memory & Dual Display! 12kV Transient Protection, 1kV Fuses, DC+AC True RMS, Duty %, 4 Digit Resolution, nS Conductance... And More! Data-Logging, PC-Comm, Bar-graph, BeepJack, Crest (Peak), Rec (Min Max), Relative, Backlit... Full-Features! Ergonomic, Magnetic Hanger, Probe Holders, Tilt Stand & Hanger, Battery Access Cover... User-Oriented! AutoCheck+LoZ, Capacitance, Line Level Hz, T1 Temperature... Full-Functions DUAL DIGITAL DISPLAY Simultaneously View Relevant Parameters In Complementary Display LARGE 10000 Counts LCD Display - 5/Sec Fast Nominal Update Rate DATA HOLD - Freezes The Displaying Reading For Later View MAX MIN RECORD - Record Max And Min Readings; Auto-Ranging DIODE TEST - For Checking Diodes And Rectifiers T1 TYPE-K TEMPERATURE - Selectable °C & °F Readings CAPACITANCE - Up To 25mF With 1000V Protection; Auto-Ranging CURRENT & Hz - Measures Current & Frequencies, In Dual Display ERGONOMIC STREAMLINE DESIGN - Fits Comfortably In One's Hand INTELLIGENT AUTO-POWER-OFF - To Extend Battery Life TRANSIENT PROTECTION - Up To 12kV 1.2/50μs Lightning Surge; Superb Protection For Serious Users EMC - Meets EN61326-1:2013 LVD SAFETY - Meets EN61010-1/-2-030/-2-033 CAT IV 1kV PROTECTIVE HOLSTER - With Holders For Probe Storage And "Third Hand" Feature, Replaceable & Washable AC, AC+DC TRUE RMS MEASUREMENTS - For Non-Sinusoidal Waveforms Of Complex Voltage Or Current Signals BEEP-JACK AUDIBLE & VISIBLE WARNING - Guards Against Improper Current Terminals Plug In. Decreases Risks Of Damage PC INTERFACE CAPABILITY - Optional Purchase USB Cable With Data Recording PC Software For Win7/8/10
