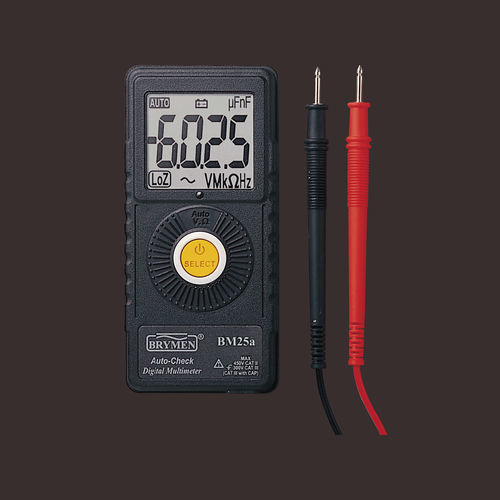

Pocket multimeter BM25a
6000 count digital300 Vcat II

Pocket multimeter - BM25a - BRYMEN - 6000 count digital / 300 V / cat II
Pocket multimeter - BM25a - BRYMEN - 6000 count digital / 300 V / cat II
Add to favorites
Compare this product

Characteristics

Display
6000 count digital
Form
pocket
Max voltage
300 V
Safety rating
cat III, cat II
Additional features
frequency
Protection level
EMC
Applications
industrial
Other characteristics
AC/DC, true RMS
Max DC voltage

Min.: 6 V

Max.: 300 V

Max AC voltage

Min.: 6 V

Max.: 300 V

Max resistance measure

Min.: 600 Ohm

Max.: 6,000,000 Ohm

Max capacity measure

Min.: 100 nF

Max.: 2,000,000 nF

Max frequency measure

Min.: 10 Hz

Max.: 30,000 Hz

DC voltage precision

Min.: 0.5 %

Max.: 2 %

AC voltage precision

1.5 %

Resistance precision

1 %, 1.2 %, 2 %

Process temperature

Min.: 0 °C
(32 °F)

Max.: 40 °C
(104 °F)

Length

113 mm
(4.45 in)

Width

53 mm
(2.09 in)

Height

10.2 mm
(0.4 in)

Weight

78 g
(2.75 oz)

Description

CAT III Card-Sized Meter That Fits Your Pockets Plus Powerful AutoCheck & EF-Detection Features! ELECTRIC FIELD - EF-Detection (Non-Contact Voltage) INTELLIGENT - Auto Power Off AUDIBLE CONTINUITY - EMC - Meets EN61326-1:2013 TRANSIENT PROTECTION - Up To 4kV 1.2/50μs Lightning Surge INPUT PROTECTION - 450V On All Functions LVD - CAT III 300V & CAT II 450V HOUSING MATERIAL - Fire-Retarded, UL Listed FREQUENCY - 10Hz To 30kHz (Auto-VΩ Position) CAPACITANCE - 100nF To 100μF, 4 Ranges AUTOCHECK OHMS - 6kΩ To 6MΩ, 4 Ranges AUTOCHECK - Lo-Z DCV & ACV 6V To 450V, 3 Ranges AUTOCHECK FEATURE - (Automatic DCV, ACV & OHMS Selection ) DATA MEASUREMENT - 5/Sec Fast LARGE EASY TO READ LCD DISPLAY - 6,000 Counts FULLY AUTO-RANGING - Yes
