6000 count digital multimeter BM2257
portable600 Vcat III

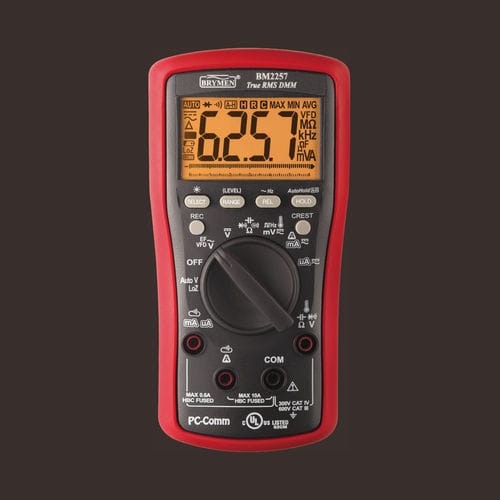

6000 count digital multimeter - BM2257 - BRYMEN - portable / 600 V / cat III
6000 count digital multimeter - BM2257 - BRYMEN - portable / 600 V / cat III
Add to favorites
Compare this product

Characteristics

Display
6000 count digital
Form
portable
Max voltage
600 V
Safety rating
cat III
Additional features
frequency, with thermometer
Other characteristics
AC/DC, true RMS, high-performance
Max DC voltage

Max.: 600 V

Min.: 0.06 V

Max AC voltage

Max.: 600,000 mV

Min.: 60 mV

Max DC current

Max.: 10,000 mA

Min.: 0.6 mA

Max AC current

Max.: 10,000 mA

Min.: 0.6 mA

Max resistance measure

Max.: 60,000,000 Ohm

Min.: 600 Ohm

Max capacity measure

Max.: 10,000,000 nF

Min.: 20 nF

Max frequency measure

Max.: 200,000 Hz

Min.: 10 Hz

DC voltage precision

0.2 %, 0.3 %, 0.4 %

AC voltage precision

0.7 %, 1 %

DC current precision

0.5 %, 1 %

AC current precision

1 %

Resistance precision

0.5 %, 0.7 %, 2 %

Process temperature

Max.: 50 °C
(122 °F)

Min.: -10 °C
(14 °F)

Length

161 mm
(6.34 in)

Width

80 mm
(3.15 in)

Height

50 mm
(1.97 in)

Weight

334 g
(11.78 oz)

Description

Multitalented and Compact; Loaded with Nice Up-to-date Features! AutoHold Real-Read™, BeepPass™ Diode, BeepLit™ Continuity, BeepJack™ InEr, LoZ AutoV, Hi/Lo EF, VFD, REC MaxMinAvg, CREST MaxMin, REL, HOLD, i-APO, PC-Comm! Powerful and Handy; High-Performance Full Functions for Daily Use! Speedy Hi-res Bar-graph, VFD-V/Hz, Logic/Line Hz, Wide-range Cx, °C/°F, Speeded MΩ, Hi-res 60.00mV, AC True-RMS, CAT III 600V CULUS Listed 3-5/6 Digits LCD Display - 6,000 Counts Nominal; 19mm Height Large Digit Relative Zero Mode - Convenient Readings Comparison & Offset Capacitance - Measures Small to Large Motor Capacitors; 7 Ranges @ 20.00nF to 10.00mF Fast Measurements - 5/Sec Nominal Data Update; Fast Auto-Ranging & Measurements DCV Best Accuracy 0.2% + 3d - Measures DCV; 3 Ranges @ 6.000V to 600V Fast Analog Bar-graph - 60 Segment High-Resolution Analog Bar-graph Updates 40/Sec PC-Comm Interface Capability - Optional Purchase USB Cable & PC Software Set Warm Amber Backlight - Amber LED Warm Backlight LCD Display REC Max/Min/Avg Auto-ranging - Records Max, Min, and Calculates Average Readings Over Time; Auto-ranging; Automatic iAPO Disable VFD_ACV with LPF - For Noisy Electrical and VFD Signals; Range @ 600.0V AutoV - Automatic Selection of ACV or DCV Whichever Higher in Magnitude LoZ Ghost-voltage-buster AutoV - Low Ramp-up Input Impedance to Drain Ghost Voltages Leaving Meter Readings on Hard Signals BeepJack™ Input Warning - Guards Against Improper Amp Terminals Plug-in for Voltage Measurements Detachable Protective Holster - Features Probe-Holders & Tilt-Stand; Washable & Replaceable
