6000 count digital multimeter BM2805CSE
portable1000 V600 V

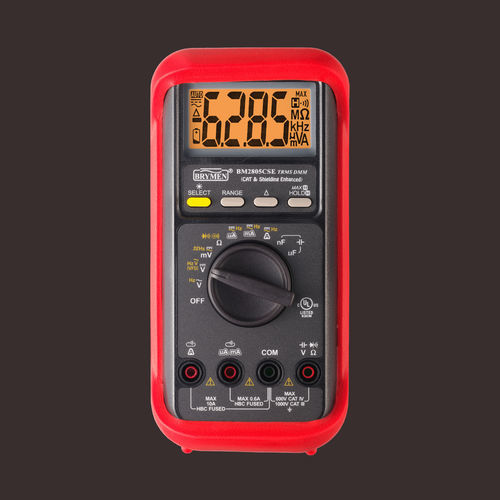

6000 count digital multimeter - BM2805CSE - BRYMEN - portable / 1000 V / 600 V
6000 count digital multimeter - BM2805CSE - BRYMEN - portable / 1000 V / 600 V
Add to favorites
Compare this product

Characteristics

Display
6000 count digital
Form
portable
Max voltage
1000 V, 600 V
Max current
10 A
Safety rating
cat III, cat IV
Additional features
frequency, with thermometer
Power supply
AAA LR03 batteries
Applications
industrial
Other characteristics
AC/DC, true RMS
Max DC voltage

Min.: 60 mV

Max.: 1,000,000 mV

Max AC voltage

Min.: 60 mV

Max.: 1,000,000 mV

Max DC current

Min.: 0.6 mA

Max.: 10,000 mA

Max AC current

Min.: 0.6 mA

Max.: 10,000 mA

Max resistance measure

Min.: 600 Ohm

Max.: 60,000,000 Ohm

Max capacity measure

Min.: 20 nF

Max.: 2,000,000 nF

Max frequency measure

Min.: 5 Hz

Max.: 300,000 Hz

Max DC voltage resolution

Min.: 60 mV

Max.: 600 mV

Max AC voltage resolution

Min.: 60 mV

Max.: 600 mV

DC voltage precision

0.2 %, 0.3 %, 0.4 %

AC voltage precision

0.7 %, 1 %, 2 %

DC current precision

0.7 %, 1 %

AC current precision

1 %, 1.5 %

Resistance precision

0.3 %, 0.5 %, 0.9 %

Process temperature

Min.: -10 °C
(14 °F)

Max.: 50 °C
(122 °F)

Description

Enhanced 2nd Gen Functions, Improved Industrial Reliability, & UL Listed Safety! VFD V/Hz, Logic/Line-level Hz, Speeded μF & MΩ, Hi-res 60.00mV, CAT III 1kV & CAT IV 600V, & True-RMS plus Double-sided EMI Shielding! 26mm Large digit LCD - 3-5/6 Digits 6,000 Counts Nominal Fast Auto-Ranging - Nominal 5/Sec Fast Measurements Relative Zero - To Offset Measurement Readings BeepLit™ Continuity Tester - Features Audible Beep & Visible Backlight Effects Warm LED Backlight - LCD Display BeepLit™ Diode Tester - Features BeepPass™ (Short-beep) & BeepLit™ (Continuity) Logic Frequency - From 5.00Hz to 300.0kHz VFD-V & VFD-Hz - Measures Fundamental V & Hz of Most Variable Frequency Drives Line Frequency - From 10.00Hz to 50.00kHz BeepJack™ InEr - Input Warning Against Improper Plug into μAmA/A Terminals Detachable Protective Holster - Features Probe-Holders & Tilt-Stand HBC 1kV Fuses - Protected on μAmA & A Terminals MAX-hold - Captures Max Readings as High as 40 Conversions per Second Data-hold with Hold-alert™ - To Warn Against On-hold Readings Speeded Capacitance - nF Ranges 20.00 to 2000, μF Ranges 20.00 to 2000 True RMS - AC Conversions iAPO - Intelligent Auto Power Off Fire Retarded Housing - Rugged with Battery Compartment Door Double-sided EMI Shielding - For Harsh Electromagnetic Interfering Environments EMC Certified - To EN61326-1
