Pocket multimeter BM22s
6000 count digital300 V600 V

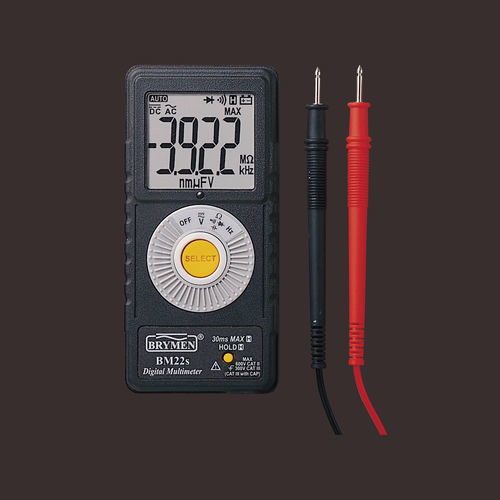

Pocket multimeter - BM22s - BRYMEN - 6000 count digital / 300 V / 600 V
Pocket multimeter - BM22s - BRYMEN - 6000 count digital / 300 V / 600 V
Add to favorites
Compare this product

Characteristics

Display
6000 count digital
Form
pocket
Max voltage
600 V, 300 V
Safety rating
cat III, cat II
Additional features
frequency
Protection level
EMC
Max DC voltage

Max.: 600 V

Min.: 6 V

Max AC voltage

Max.: 600 V

Min.: 6 V

Max resistance measure

Max.: 40,000,000 Ohm

Min.: 400 Ohm

Max capacity measure

Max.: 3,000,000 nF

Min.: 500 nF

Max frequency measure

Max.: 30,000 Hz

Min.: 10 Hz

Description

CAT III Card-Sized Meter That Fits Your Pockets STANDARD - Auto Power Off STANDARD - Hi-Z DCV & ACV 6V To 600V, 3 Ranges DIODE TEST - Yes AUDIBLE CONTINUITY - Yes EMC - EN61326:2013 TRANSIENT PROTECTION - Up To 4kV 1.2/50μs Lightning Surge INPUT PROTECTION - 600V On All Functions LVD - EN61010-1/-2-030/-2-033 CAT III 300V & CAT II 600V FUNCTION SELECTOR - Yes HOUSING MATERIAL - Fire-Retarded, UL Listed FREQUENCY - 10Hz To 30kHz (Auto-VΩ Position) CAPACITANCE - 500nF To 3000μF, 5 Ranges OHMS - 400kΩ To 40MΩ, 6 Ranges DATA MEASUREMENT - 5/Sec Fast LARGE EASY TO READ LCD DISPLAY - 6,000 Counts FULLY AUTO-RANGING - Yes
