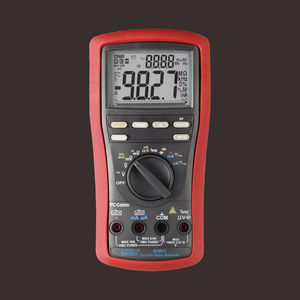

Cat IV multimeter BM821s
10000 count digitalportable1000 V

Cat IV multimeter - BM821s - BRYMEN - 10000 count digital / portable / 1000 V
Cat IV multimeter - BM821s - BRYMEN - 10000 count digital / portable / 1000 V
Add to favorites
Compare this product

Characteristics

Display
10000 count digital
Form
portable
Max voltage
1000 V
Max current
10 A
Safety rating
cat IV
Additional features
frequency, with thermometer
Applications
industrial
Other characteristics
AC/DC, true RMS
Max DC voltage

Max.: 1,000 V

Min.: 0.06 V

Max AC voltage

Max.: 1,000,000 mV

Min.: 60 mV

Max DC current

Max.: 10,000 mA

Min.: 0.6 mA

Max AC current

Max.: 10,000 mA

Min.: 0.6 mA

Max resistance measure

Max.: 60,000,000 Ohm

Min.: 600 Ohm

Max capacity measure

Max.: 25,000,000 nF

Min.: 60 nF

Max frequency measure

Max.: 1,000,000 Hz

Min.: 5 Hz

DC voltage precision

0.06 %, 0.12 %

AC voltage precision

Max.: 3 %

Min.: 0.7 %

DC current precision

0.2 %

AC current precision

0.6 %, 0.8 %, 1 %

Resistance precision

Max.: 1.5 %

Min.: 0.1 %

Process temperature

Max.: 45 °C
(113 °F)

Min.: 0 °C
(32 °F)

Length

208 mm
(8.19 in)

Width

103 mm
(4.06 in)

Height

64.5 mm
(2.54 in)

Weight

635 g
(22.4 oz)

Description

Choice Of Dual Display Performance & CAT IV 1kV Safety! 12kV Transient Protection, Duty %, 4 Digit Resolution... And More! Ergonomic, Magnetic Hanger, Probe Holders, Tilt Stand & Hanger, Battery Access Cover... User-Oriented! PC-Comm, Bar-graph, BeepJack, Relative... Full-Features! Capacitance, Line Level Hz... Full-Functions HIGH ACCURACY - 0.08% Basic DCV Accuracy; Fast Auto-Ranging ANALOG BAR-GRAPH - Fast Update Rate 60/Sec LARGE 10000 COUNTS LCD DISPLAY - 5/Sec Fast Nominal Update Rate ASIC TECHNOLOGY - More Functions & Features At Affordable Prices DUAL DIGITAL DISPLAY - Simultaneously View Relevant Parameters In Complementary Display FAST AUDIBLE CONTINUITY - For Quick Open-Short Tests On Switches, Fuses, And Wires DATA HOLD - Freezes The Displaying Reading For Later View DIODE TEST - For Checking Diodes And Rectifiers CAPACITANCE - Up To 25mF With 1000V Protection; Auto-Ranging CURRENT & Hz - Measures Current & Frequencies In Dual Display ERGONOMIC STREAMLINE DESIGN - Fits Comfortably In One's Hand INTELLIGENT AUTO-POWER-OFF - To Extend Battery Life TRANSIENT PROTECTION - Up To 12kV 1.2/50μs Lightning Surge; Superb Protection For Serious Users EMC - Meets EN61326-1:2013 LVD SAFETY - Meets EN61010-1 ED. 3.0, EN61010-2-030 ED. 1.0 & EN61010-2-033 ED. 1.0 To CAT IV 1kV PROTECTIVE HOLSTER - With Holders For Probe Storage And "Third Hand" Feature, Replaceable & Washable BEEP-JACK AUDIBLE & VISIBLE WARNING - Guards Against Improper Current Terminals Plug In. Decreases Risks Of Damage PC INTERFACE CAPABILITY - Optional Purchase USB Cable With Data Recording PC Software For Win7/8/10
