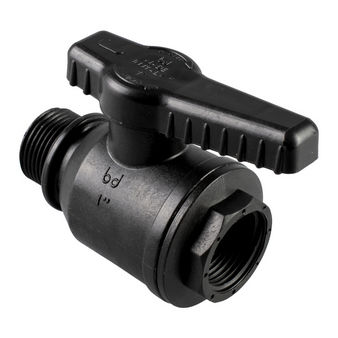

Ball valve 0200330 seriesmanualfor controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- for control
- Media
- for water
- Body
- female, male
- Applications
- for pipes
- Material
- polypropylene
- Other characteristics
- ISO, standard, with seal
- DN
0.5 in, 0.75 in, 1 in
- Pressure
10 bar
(145 psi)- Temperature
Min.: 0 °C
(32 °F)Max.: 80 °C
(176 °F)
Description
BALL VALVE with connections: threaded female end G and threaded male end G1 with NBR O-ring
Connectivity standard
External thread GAS cylindrical ISO 228/1
Connectivity standard
Internal thread GAS cylindrical ISO 228/1.
Connectivity standard
Bucchi srl for pipe fittings adopts as standard connection ISO 228/1; in order to improve hydraulic seal has decided to create its own internal regulations, based on a soft conical thread. Therefore it is noted that to ensure the hydraulic seal declared it is expected a slight tightening with a key that does not generate the breakage of the coupling. (See table tightening torque)
Full bore
The hole of the sphere corresponds to the internal diameter of the tube
Colors
Black (RAL 9011)
